General Description:

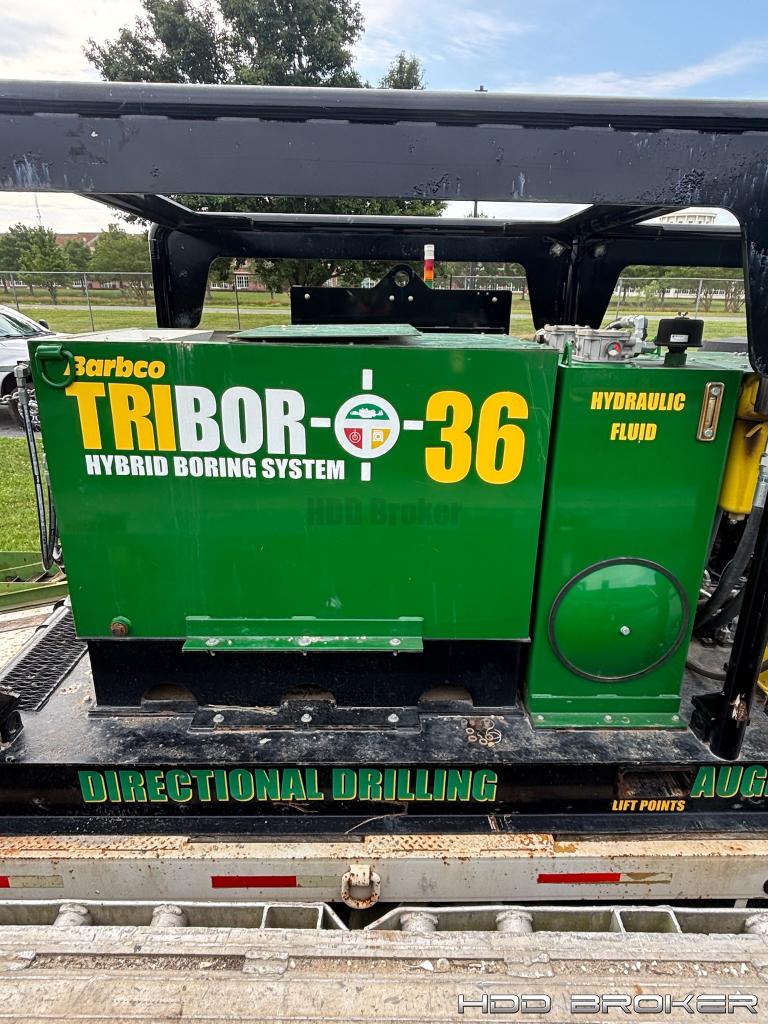

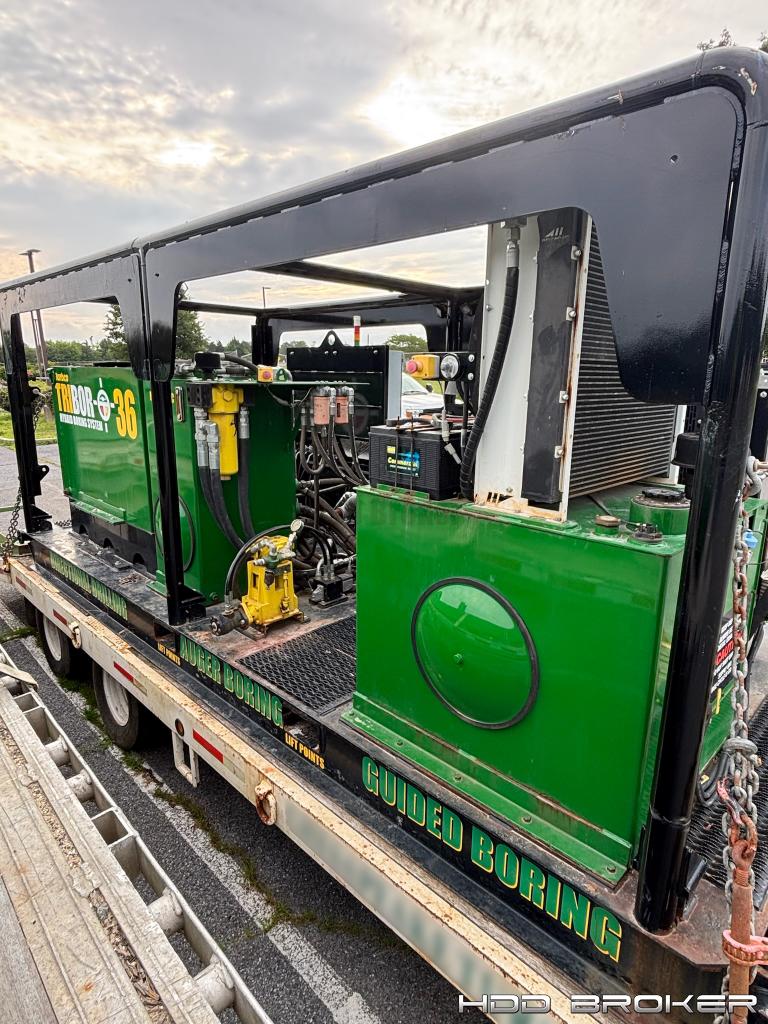

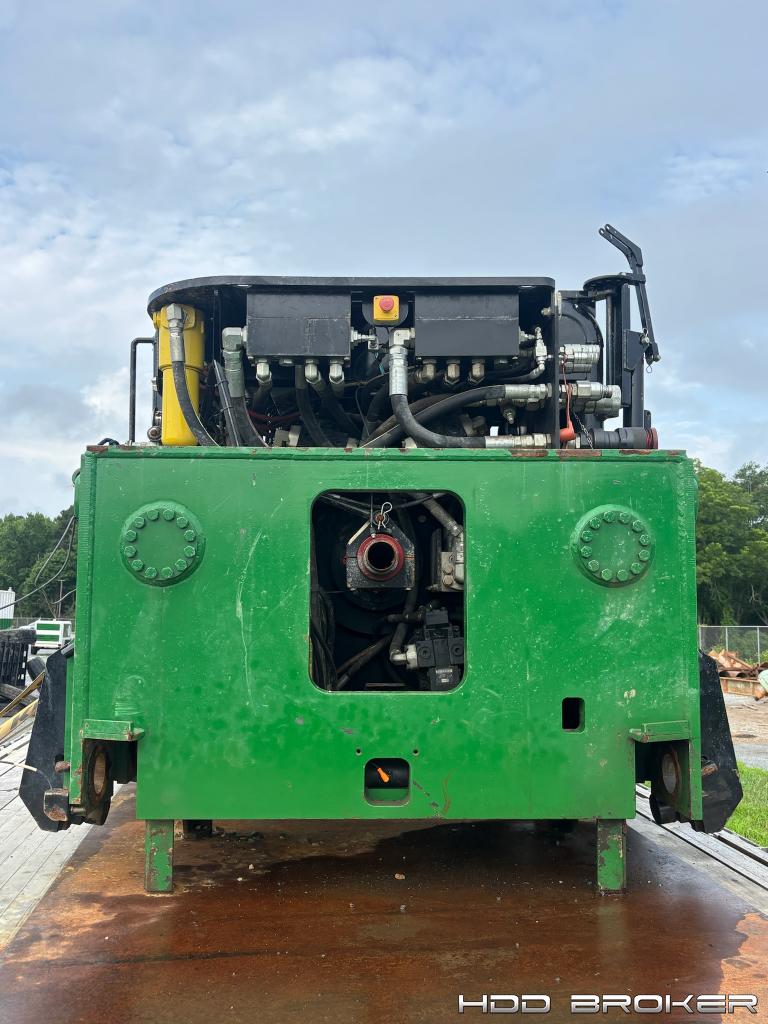

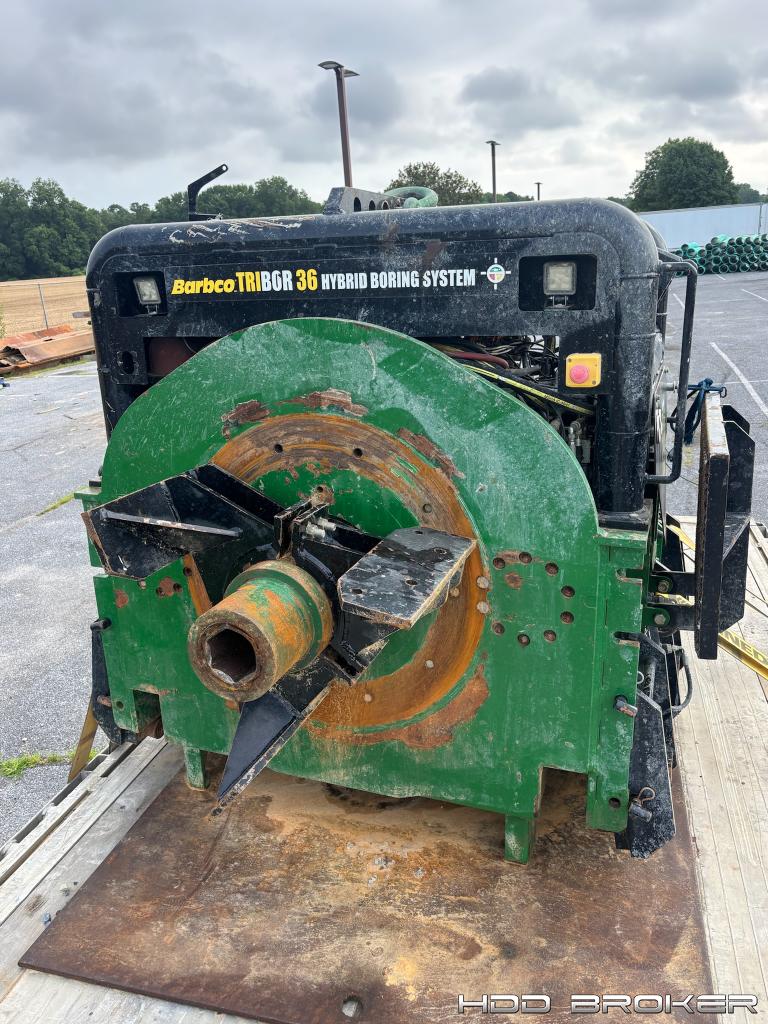

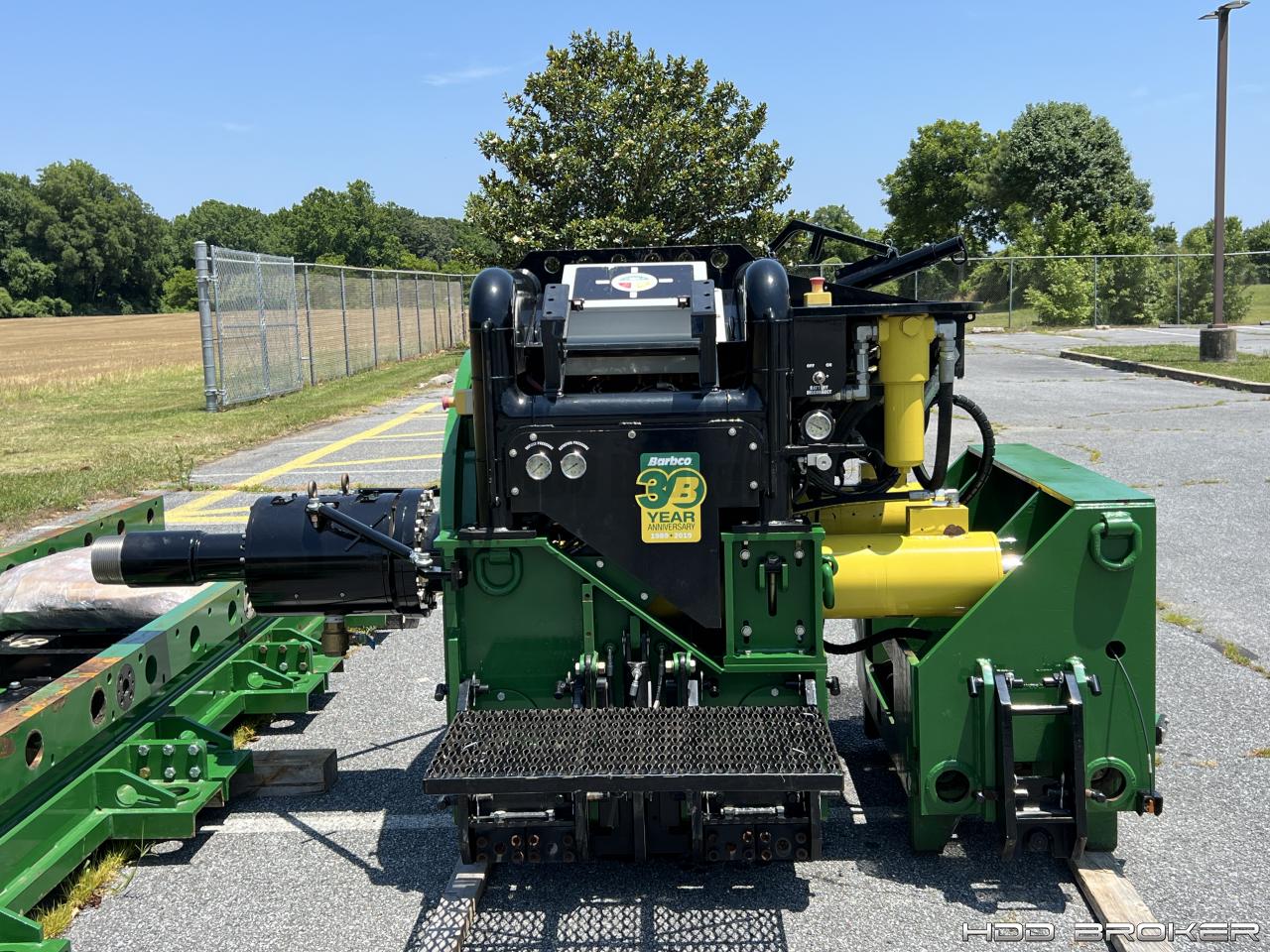

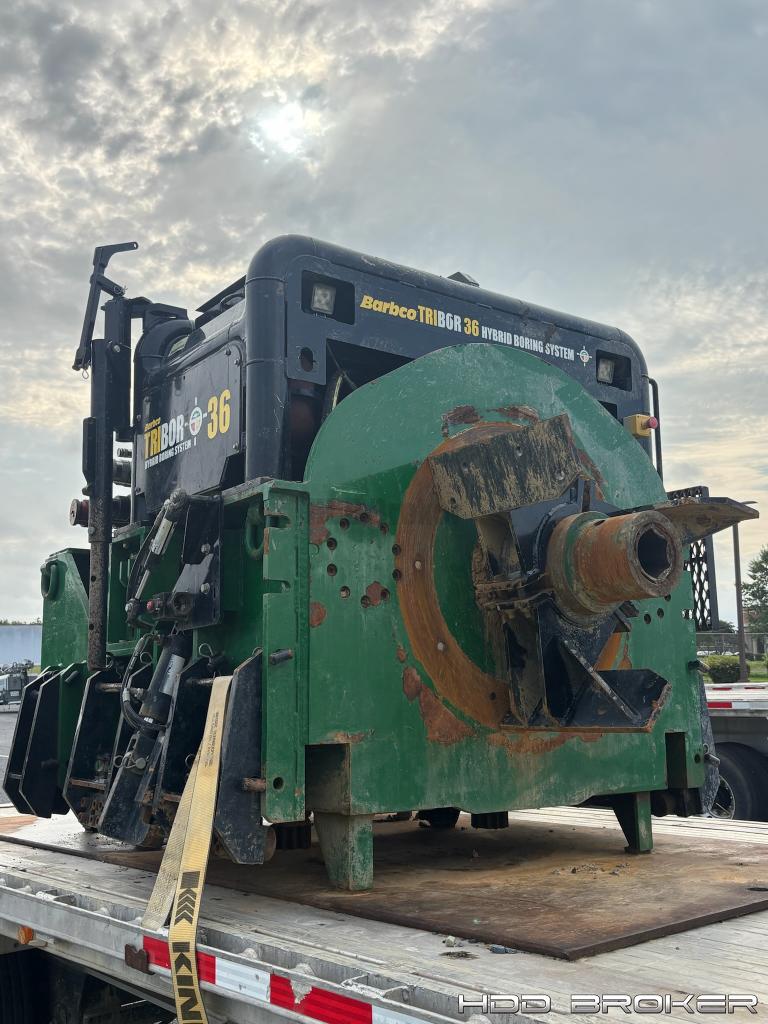

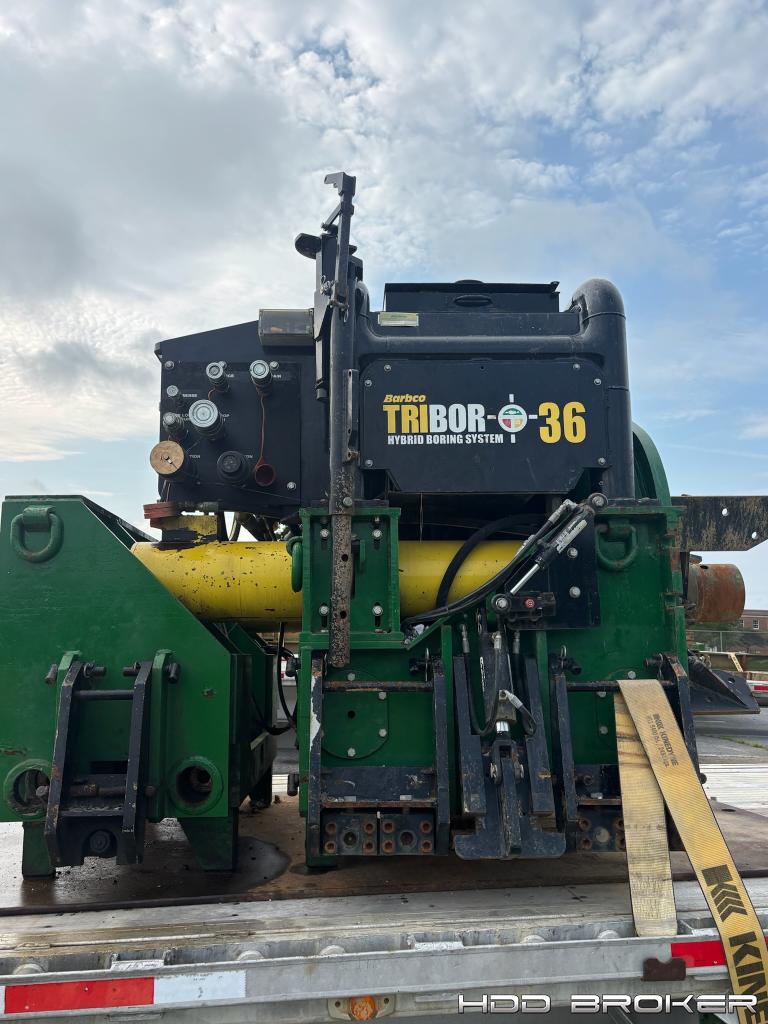

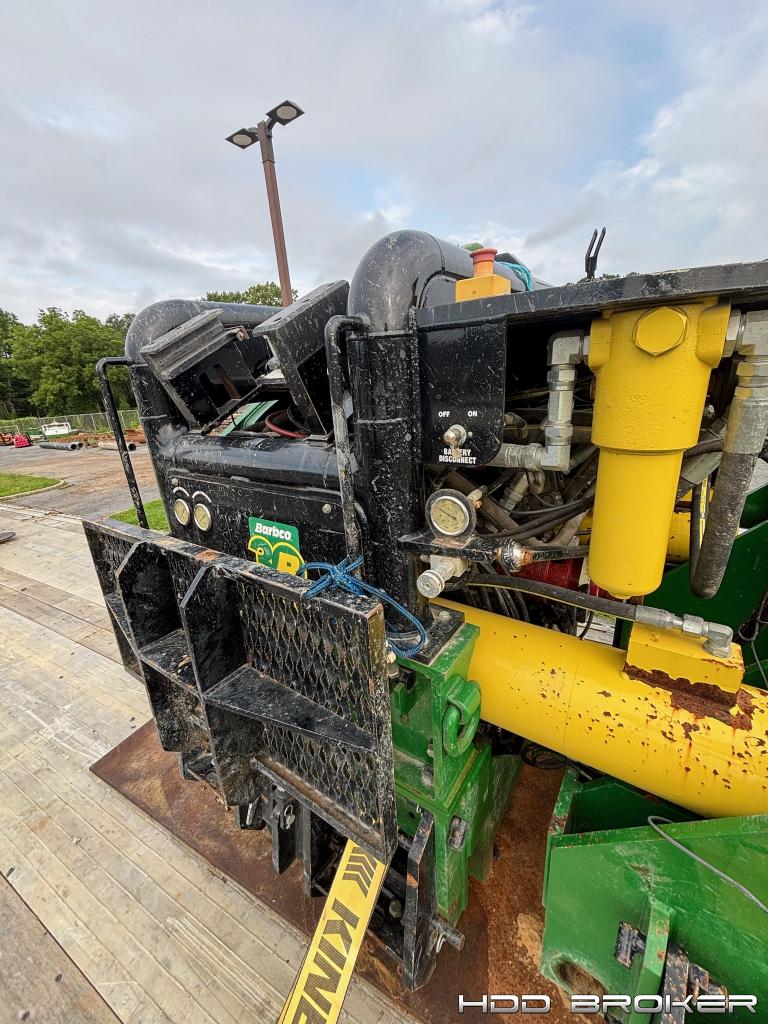

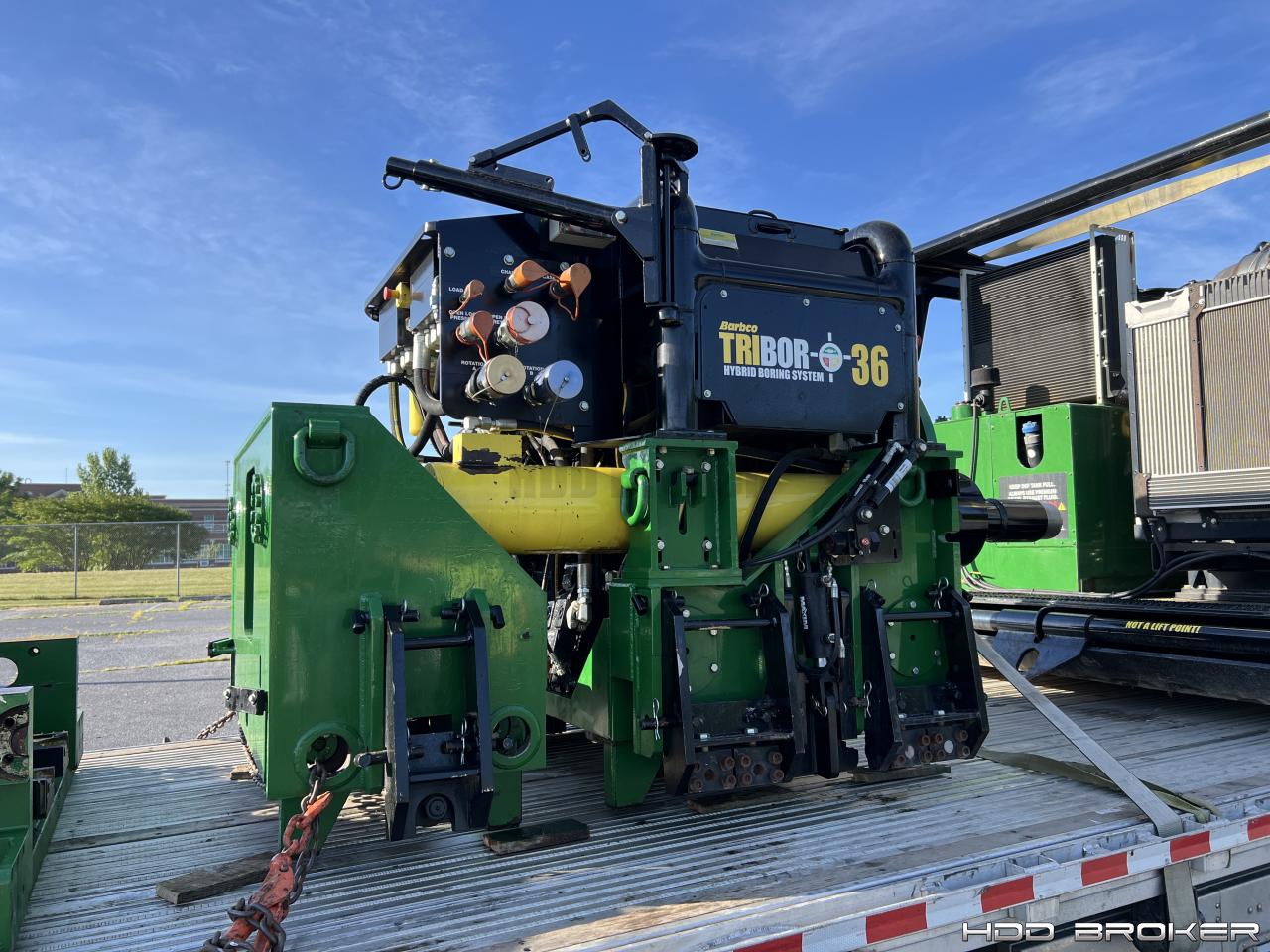

2024 Barbco TriBor36 Auger Boring Machine.

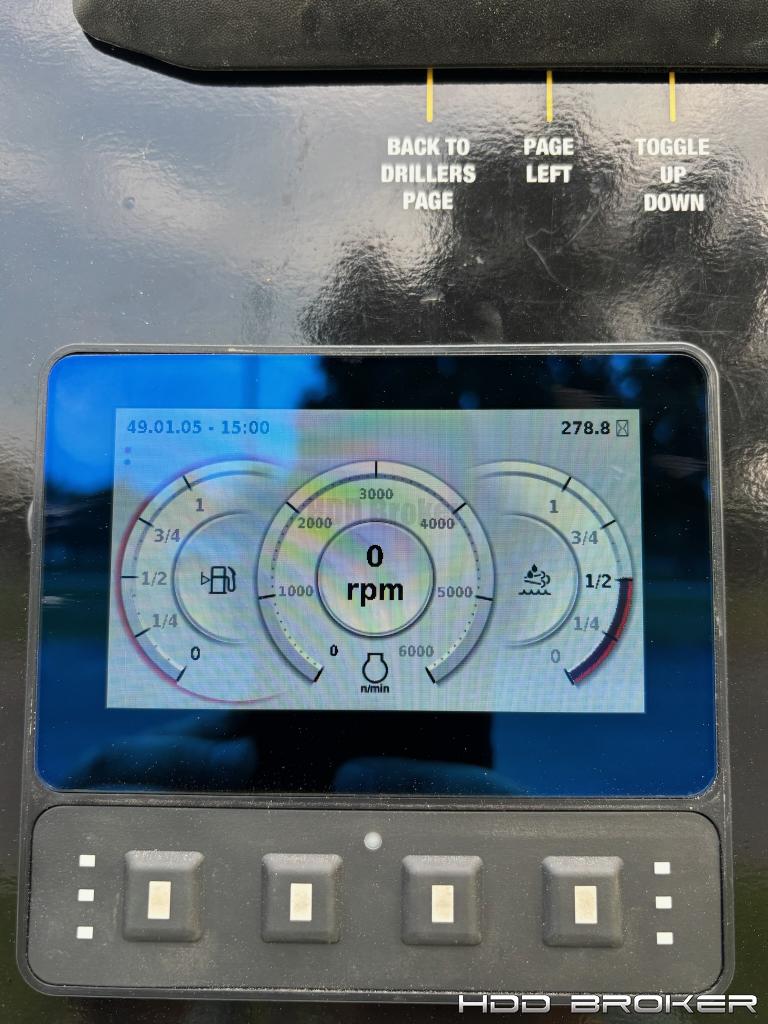

Seller States: 278.8 Hours only!
Accessories:
INCLUDES:
-(1) Tribor36 Universal Drill.

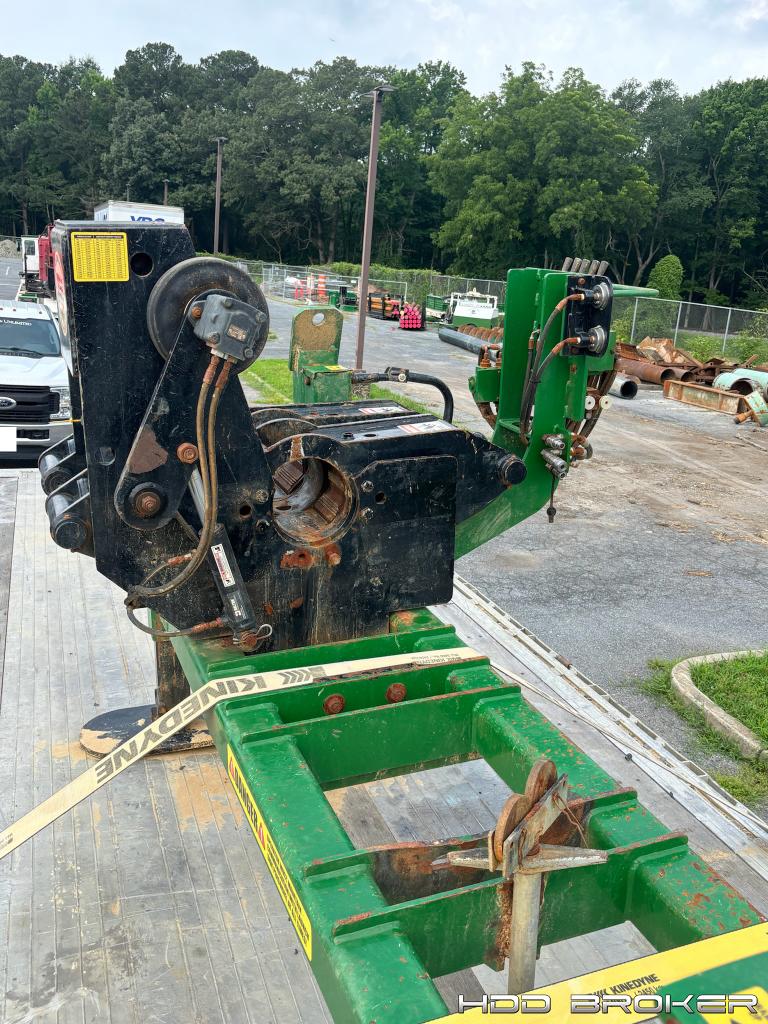

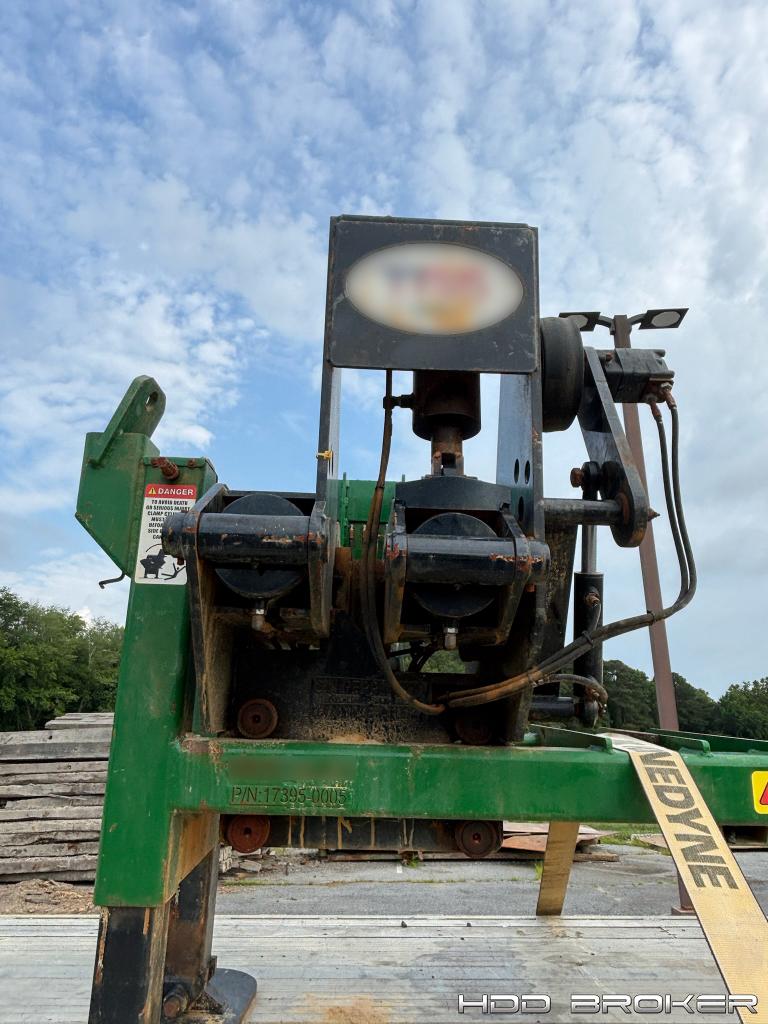

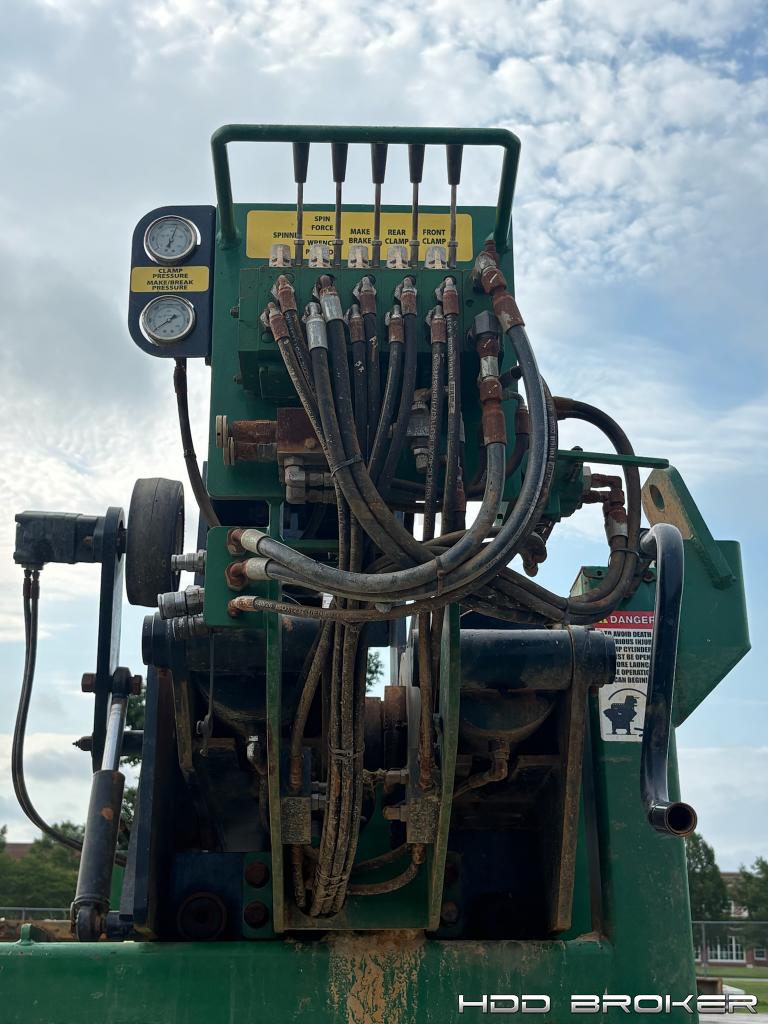

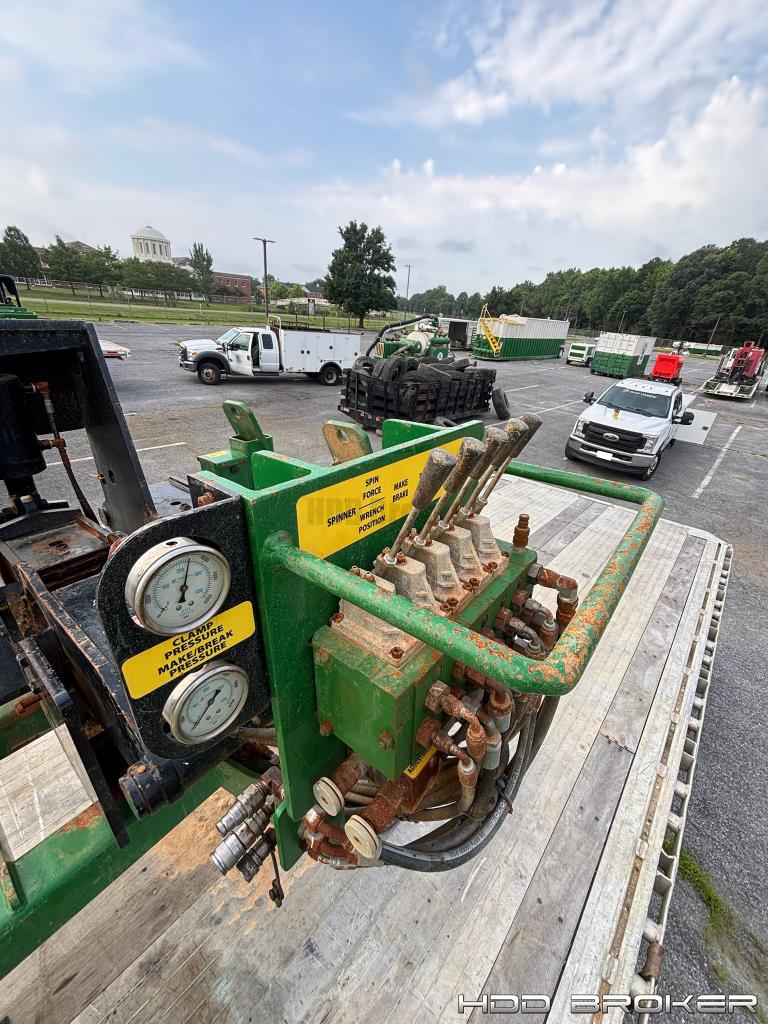

-(1) Machine side breakout system consisting of Plug-and-Play Dual Breakout, Manual Valve and Track Dogs.
-(1) Guided Boring Kit (GBM) consisting of Side Inlet Mud Swivel and Pilot Tube Sub Saver (can utilize any manufactures pilot tubes).

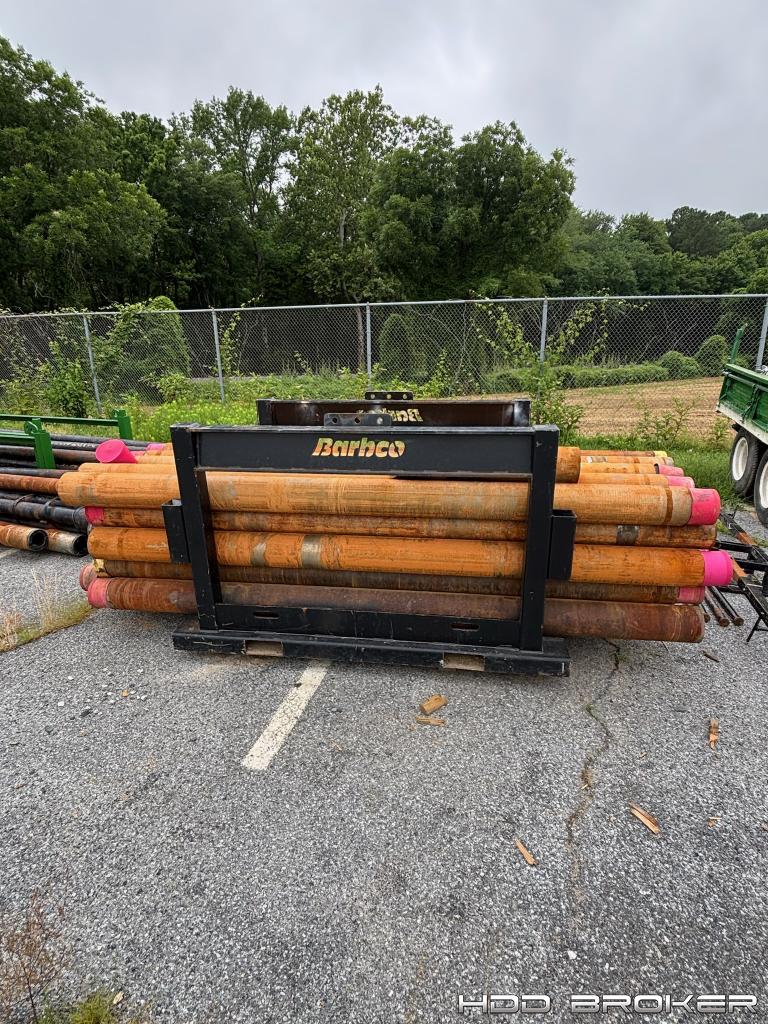

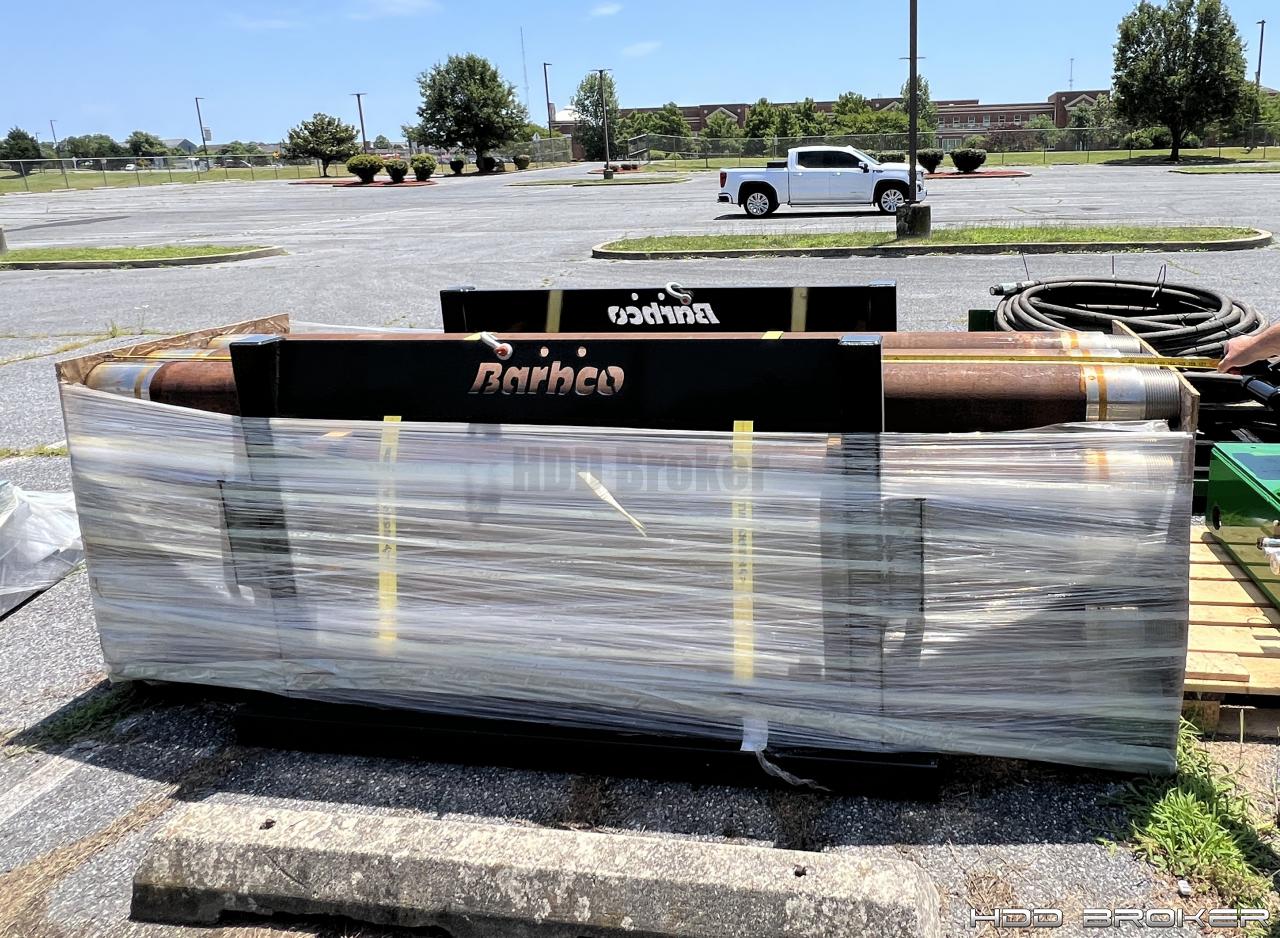

-(46) 7 Inch OD Modified 4-1/2 API Thread x 10 Foot long with 3-5/8 inch Sight Tube - Premium Pilot Tube.

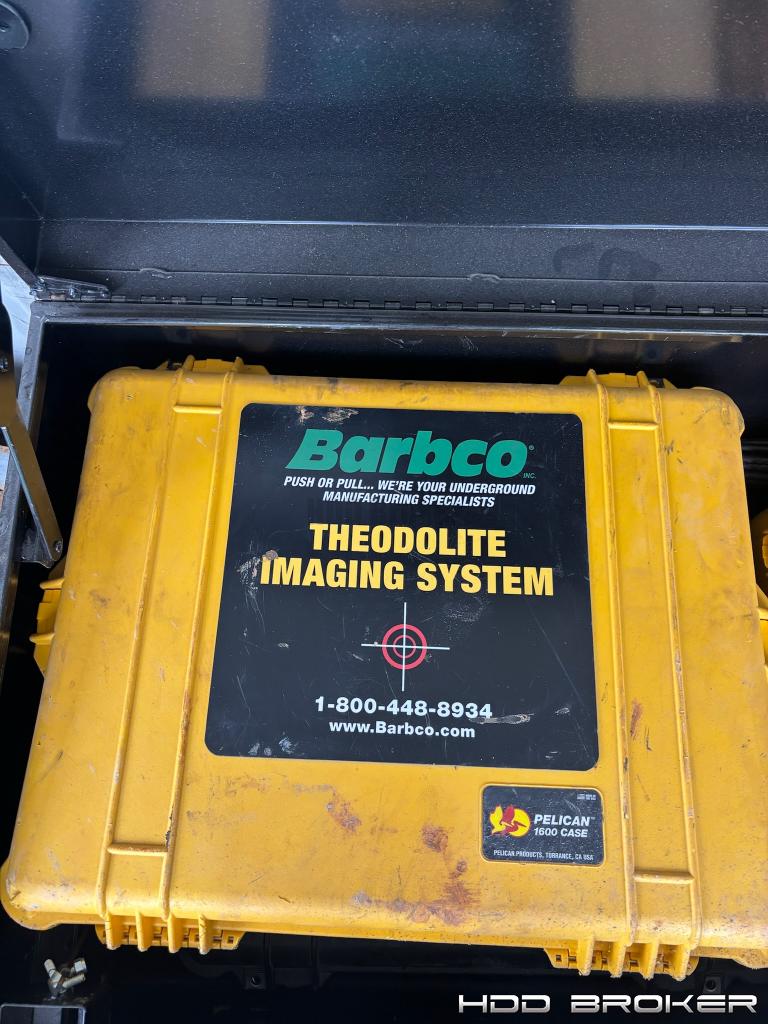

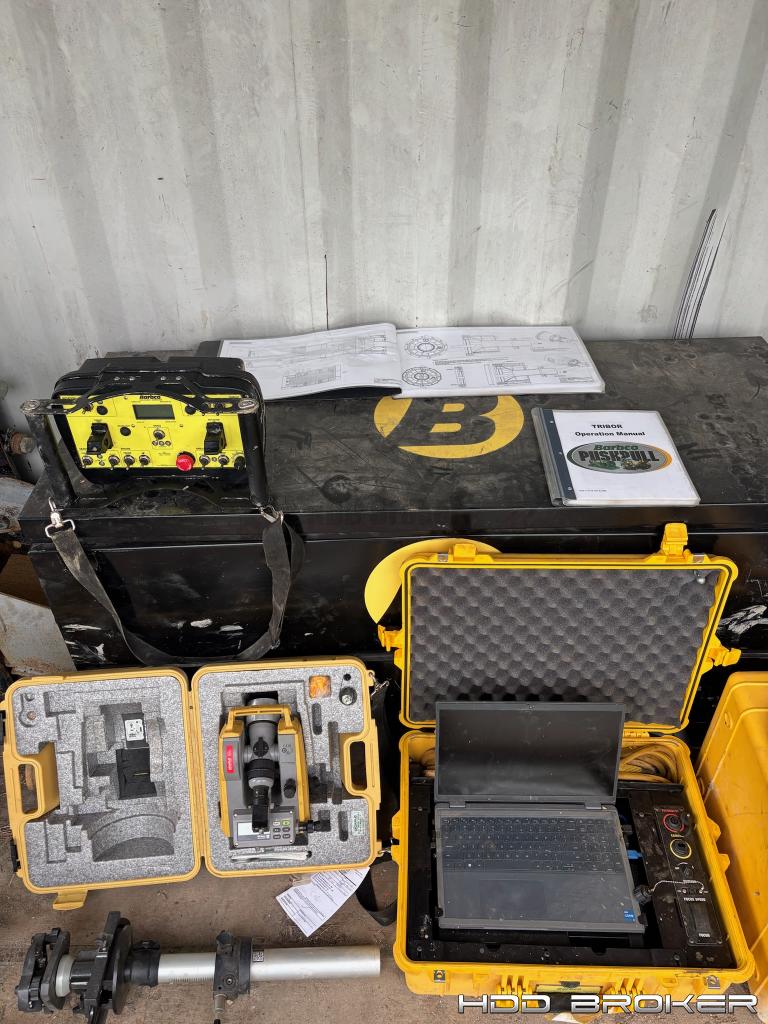

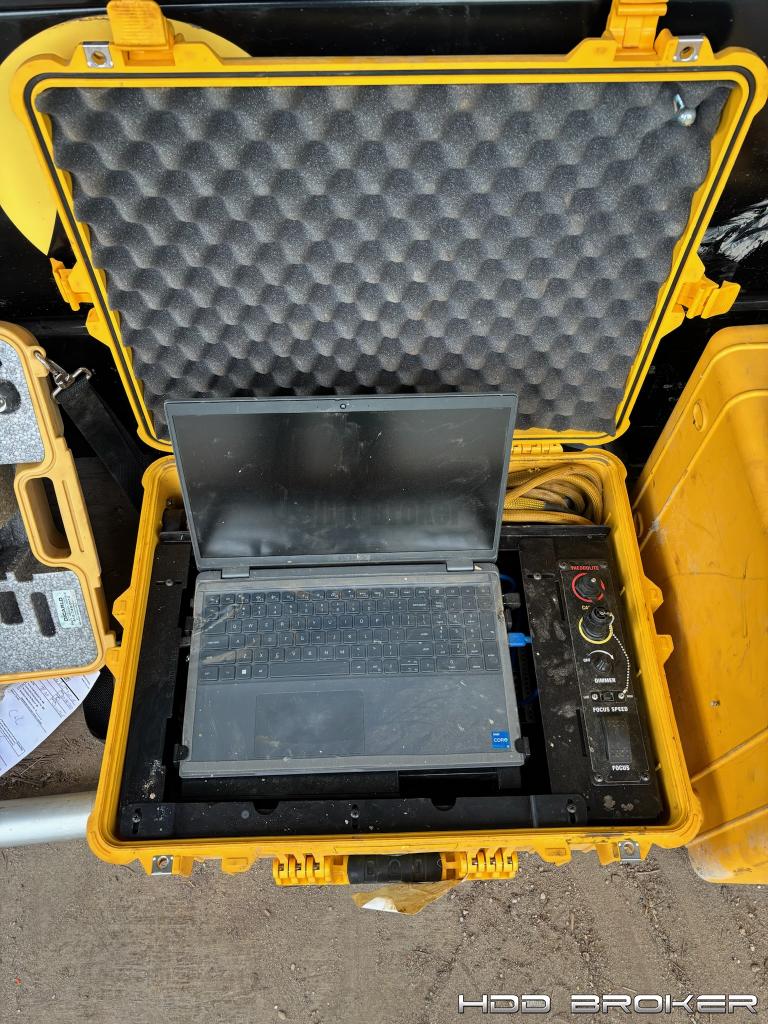

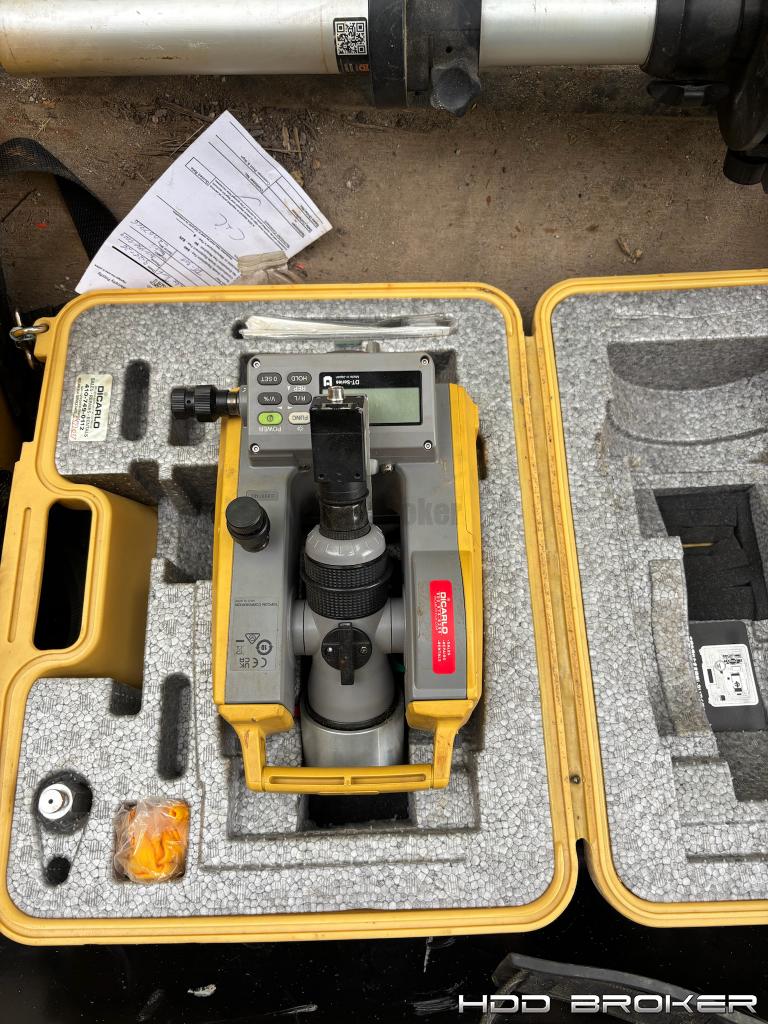

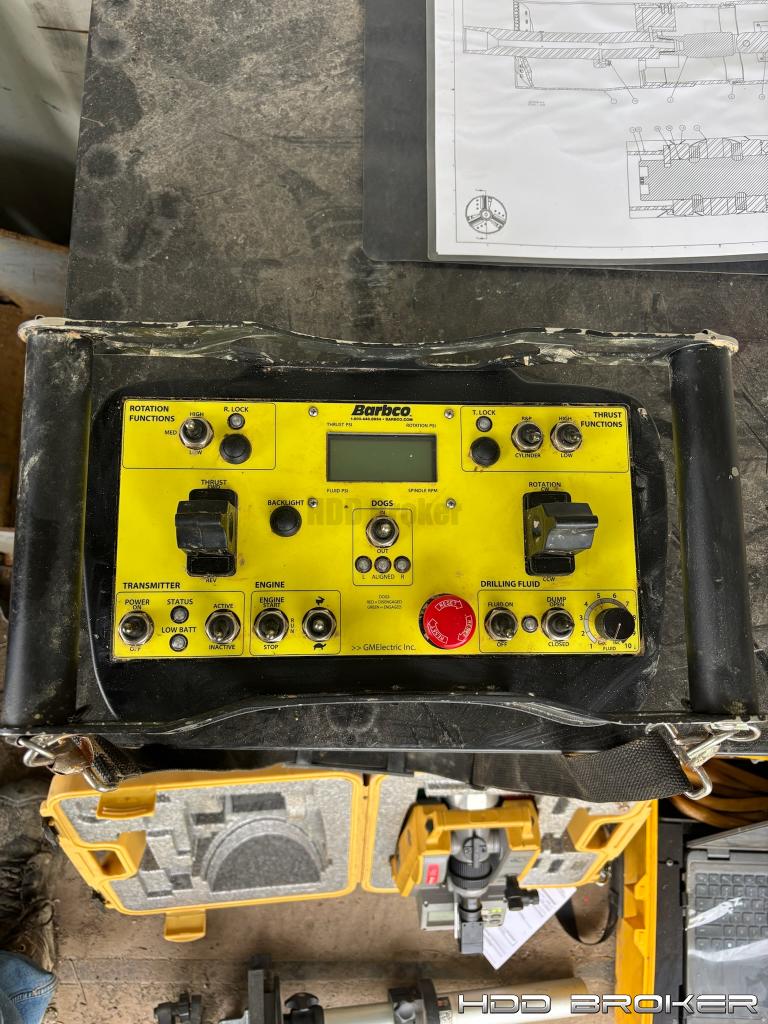

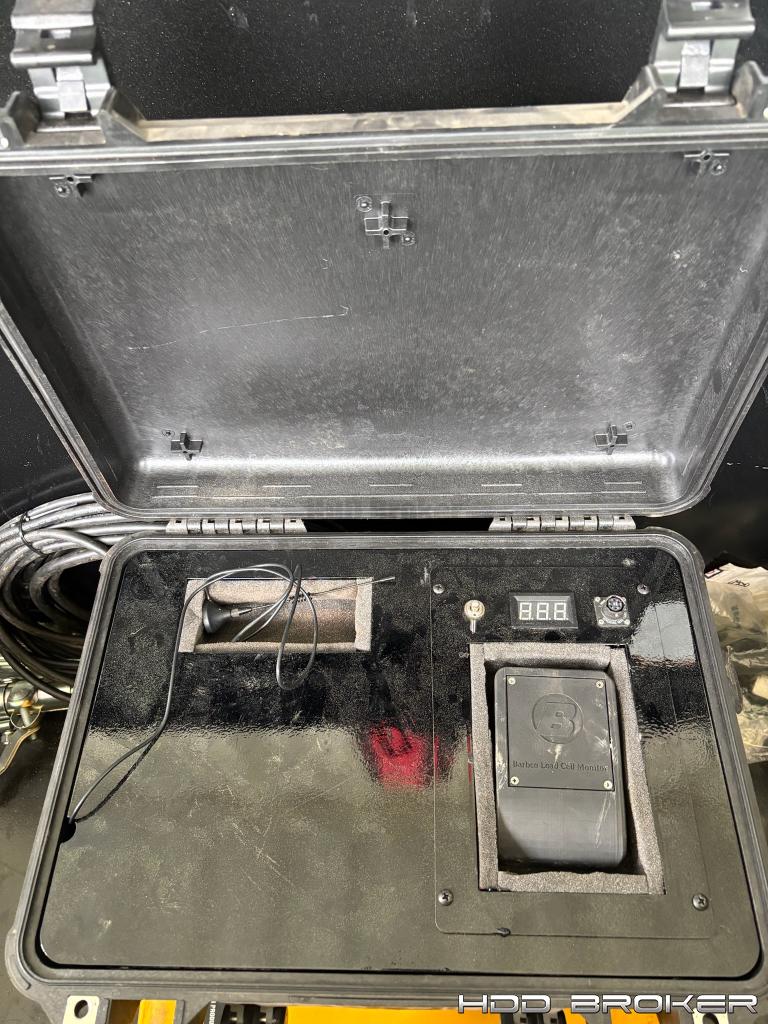

-(1) Pilot Tube Guidance Kit including: Theolite with mounted camera and adjustable stand, Laptop with Case, 5.5 Inch illuminated Target and all tooling for extracting target assembly from housing.
-Includes Camera and Drive Plug.

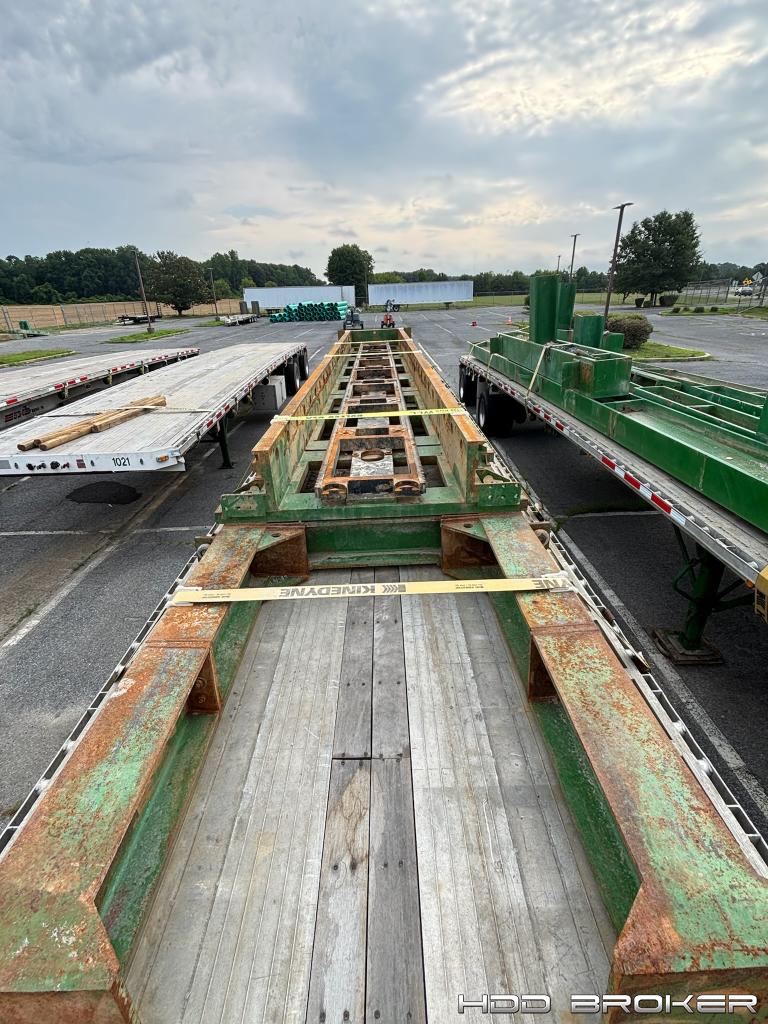

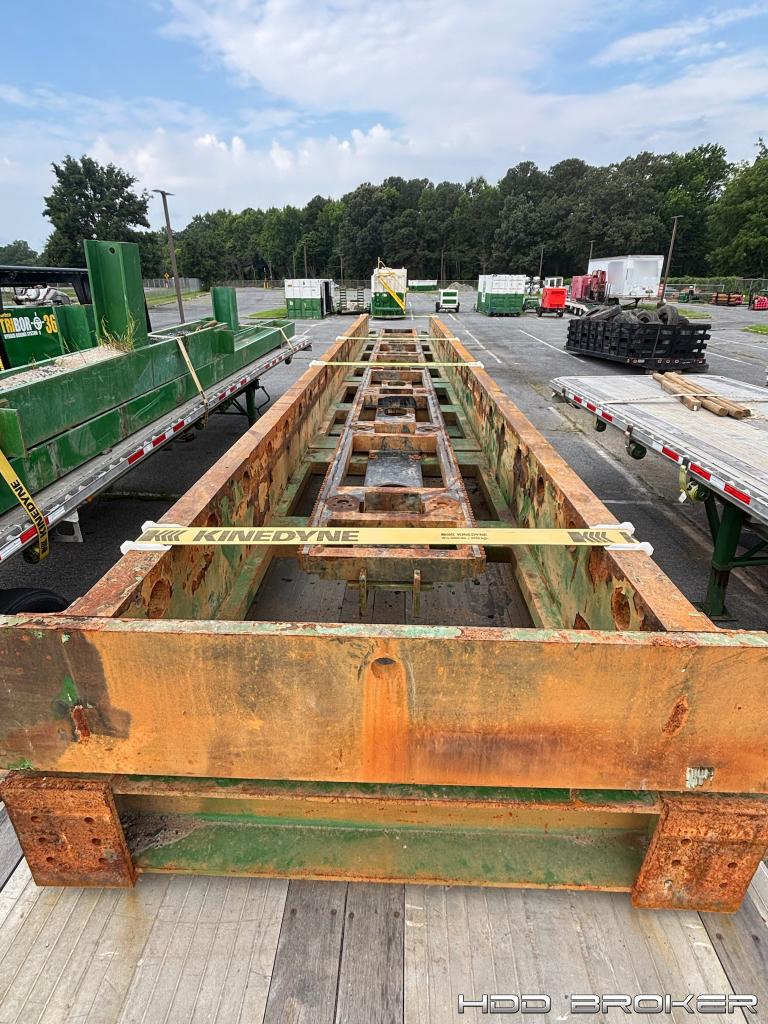

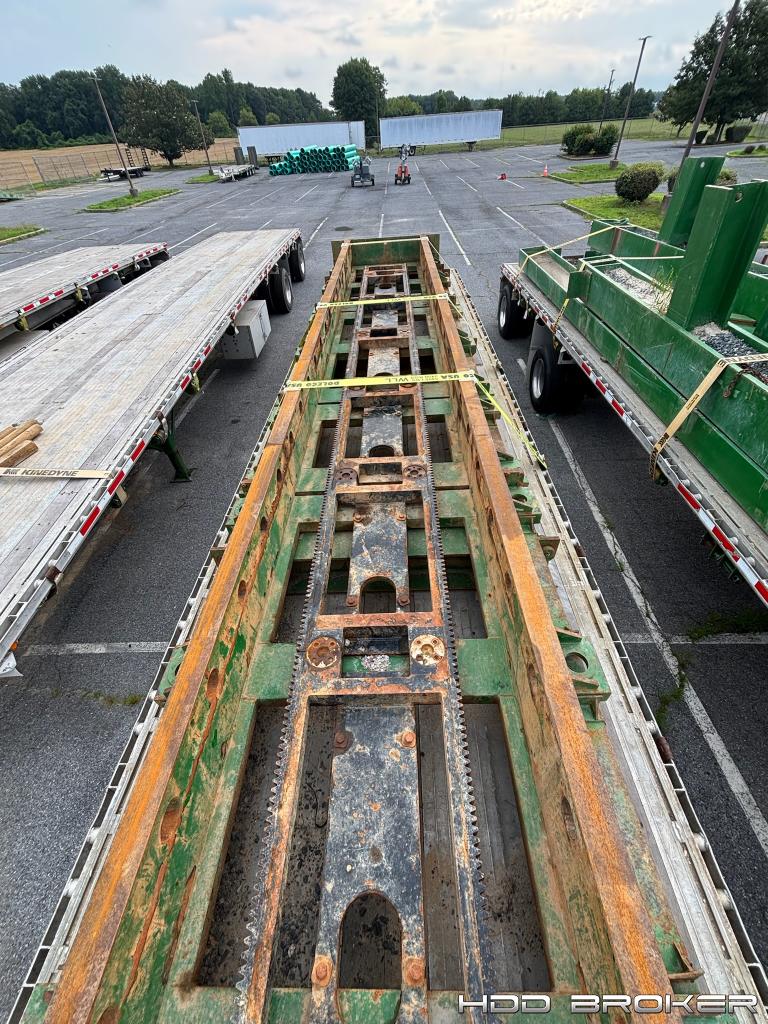

-(2) Additional 4 foot sections of Drill Track.

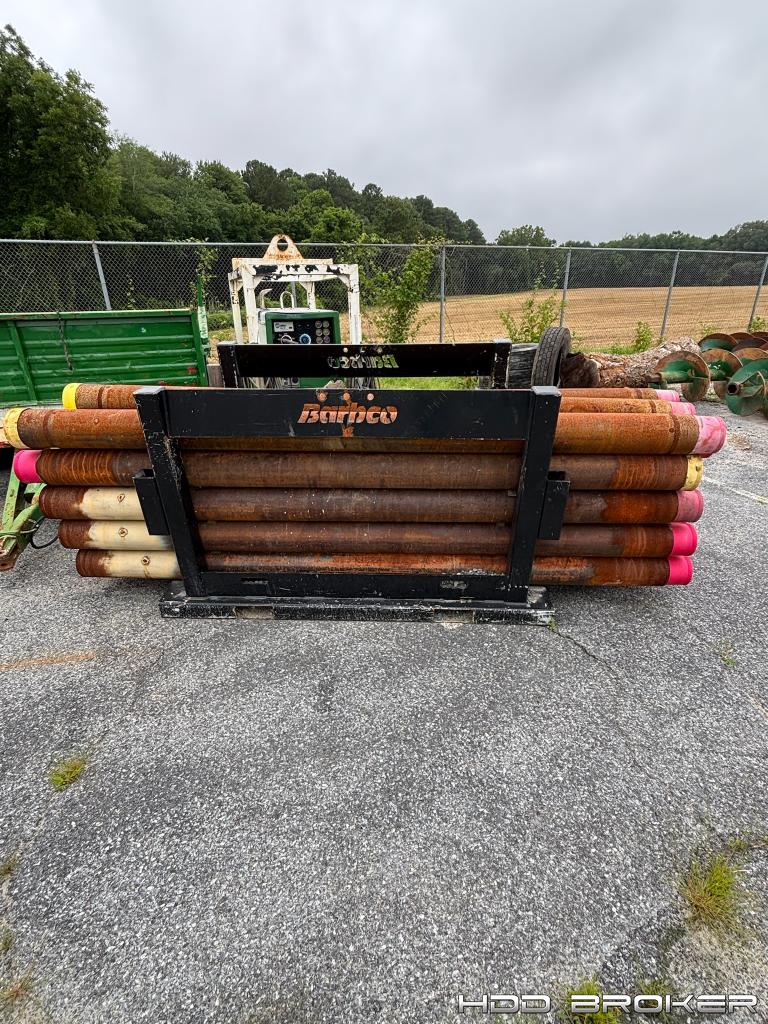

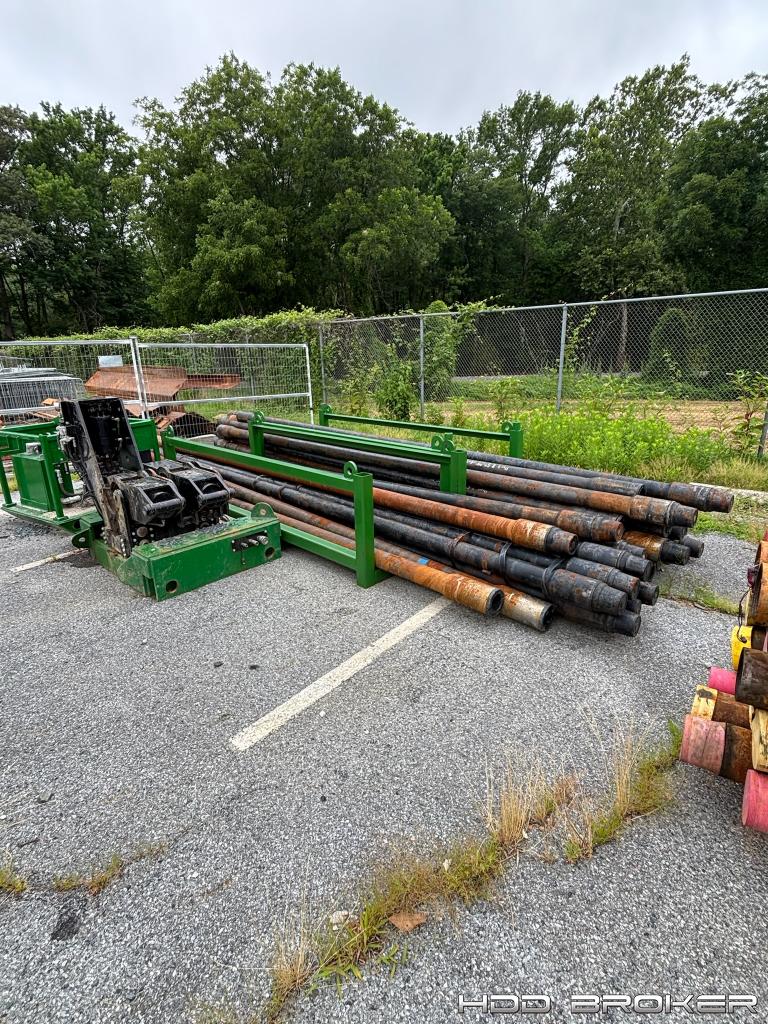

(33) Drill Rod:
-S135 IEU (19.50#).
-5 Inch Mid-Body x .362 inch Wall x 20 foot.
-6-5/8 inch Tool Joint OD x 3-1/2 inch Tool Joint ID.
-Connection: DS50 (4-1/2 IF Double Shoulder) (529#).
Assorted Items:

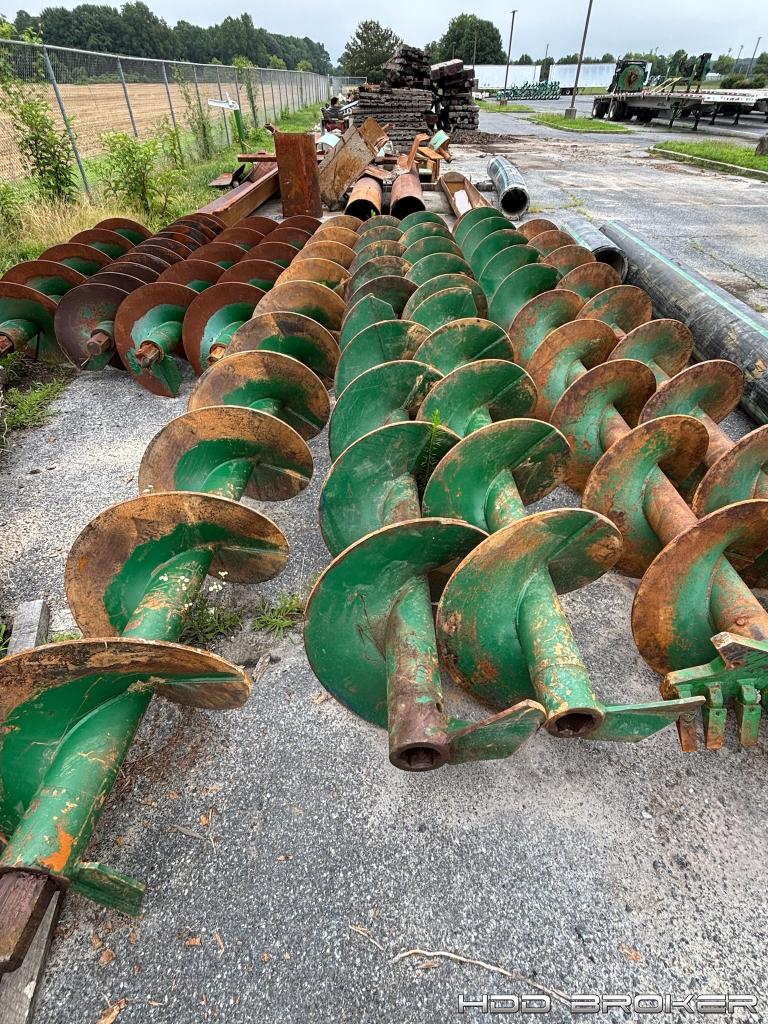

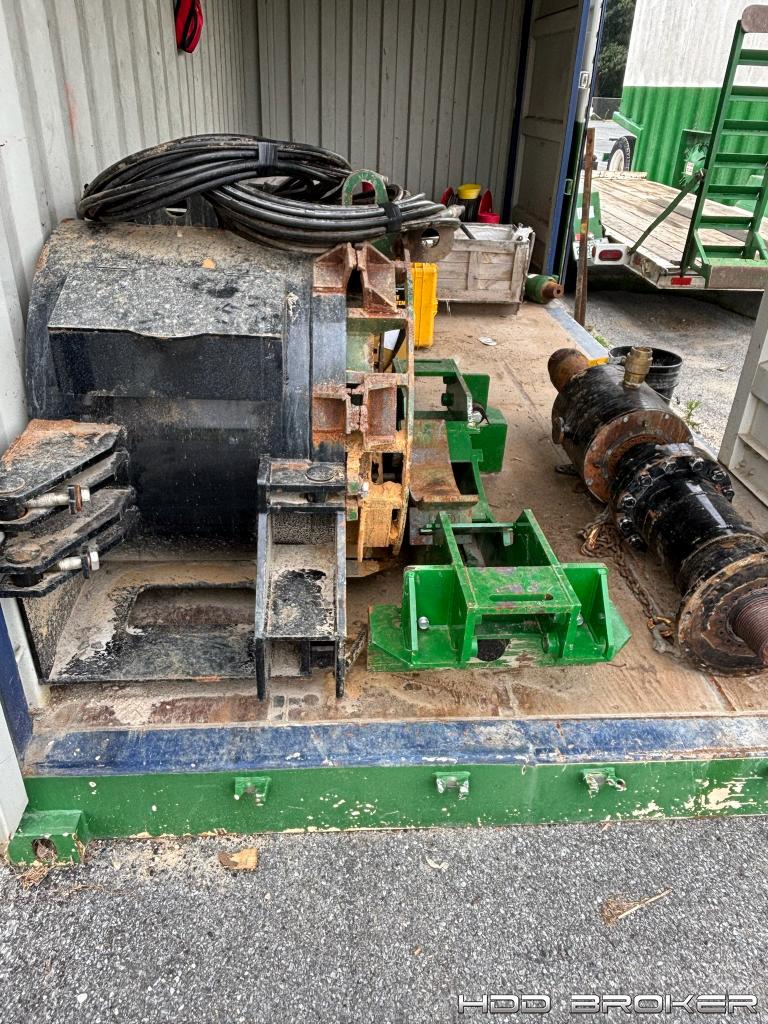

-(1) 30 inch x 10 foot x 4 inch Hex Sand Auger 12 inch Pitch.

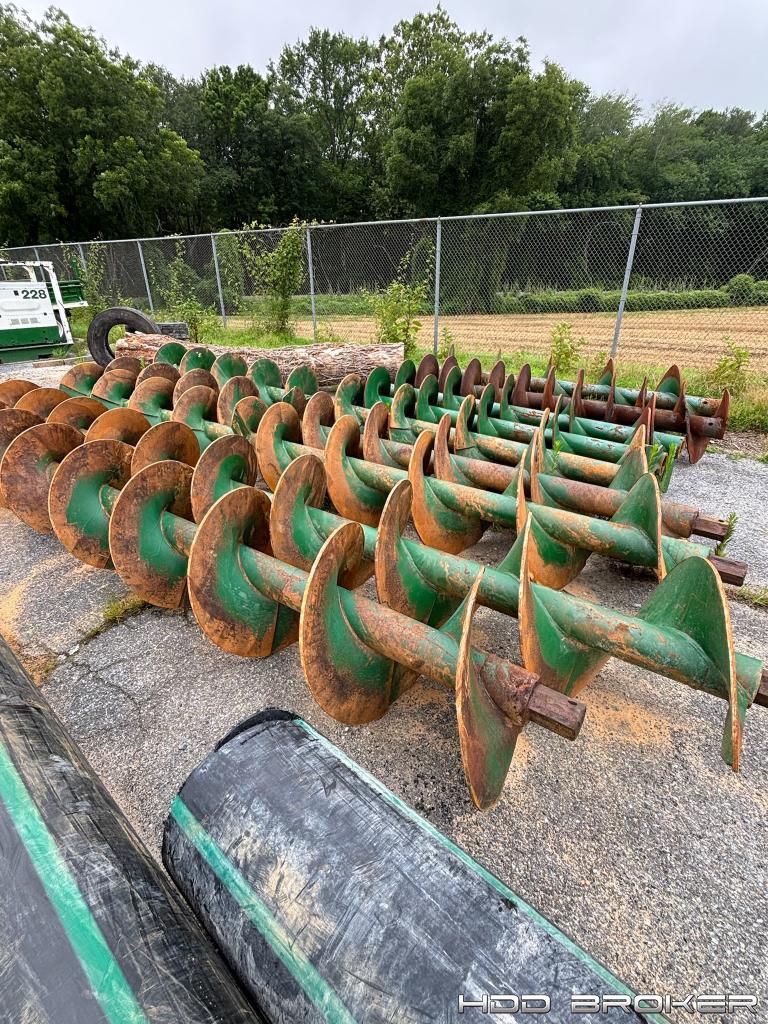

-(13) 30 inch x 10 foot x 4 inch Hex Augers.

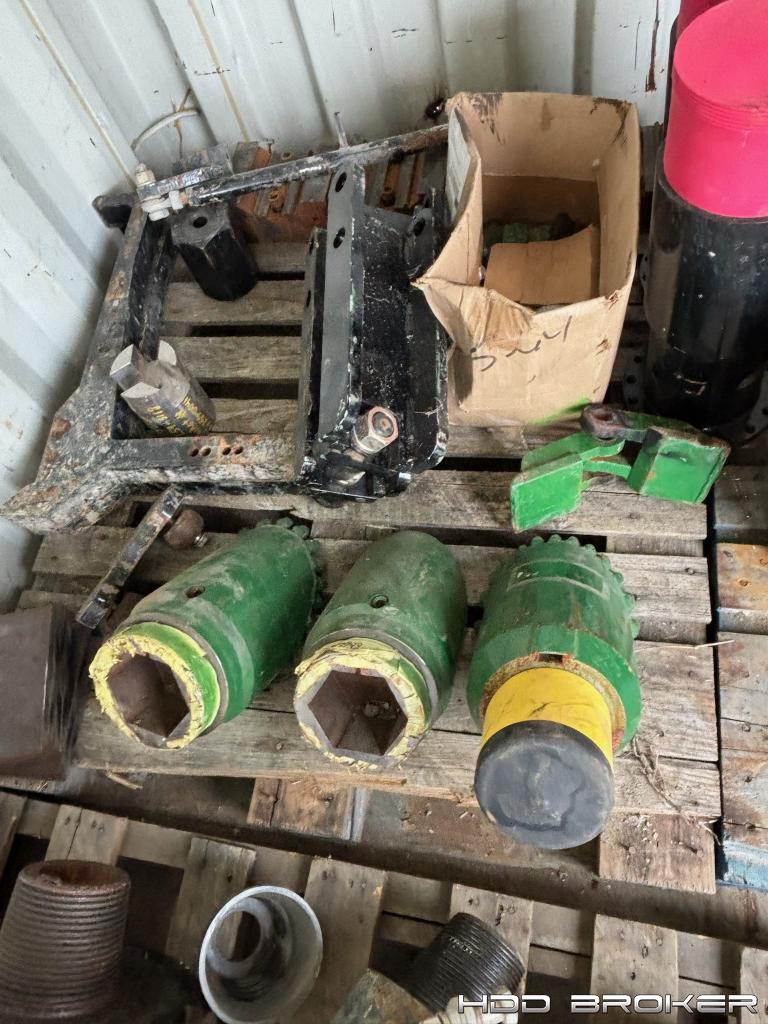

-(1) 30 inch BBC25 x 4 inch Hex Dirt Head.

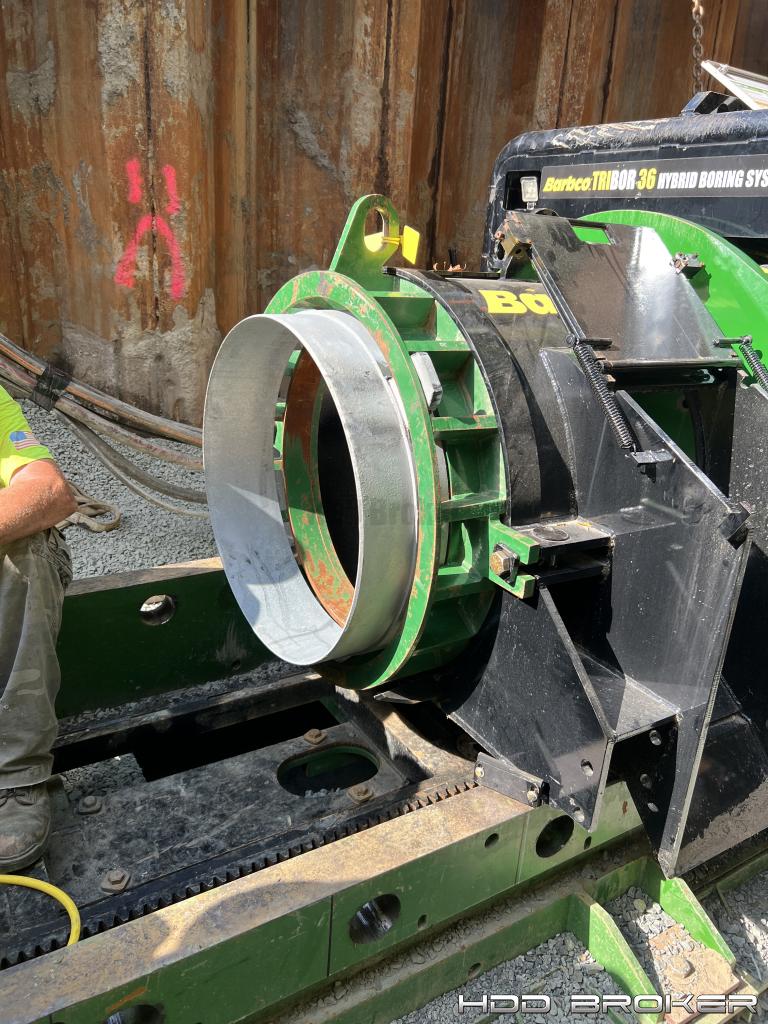

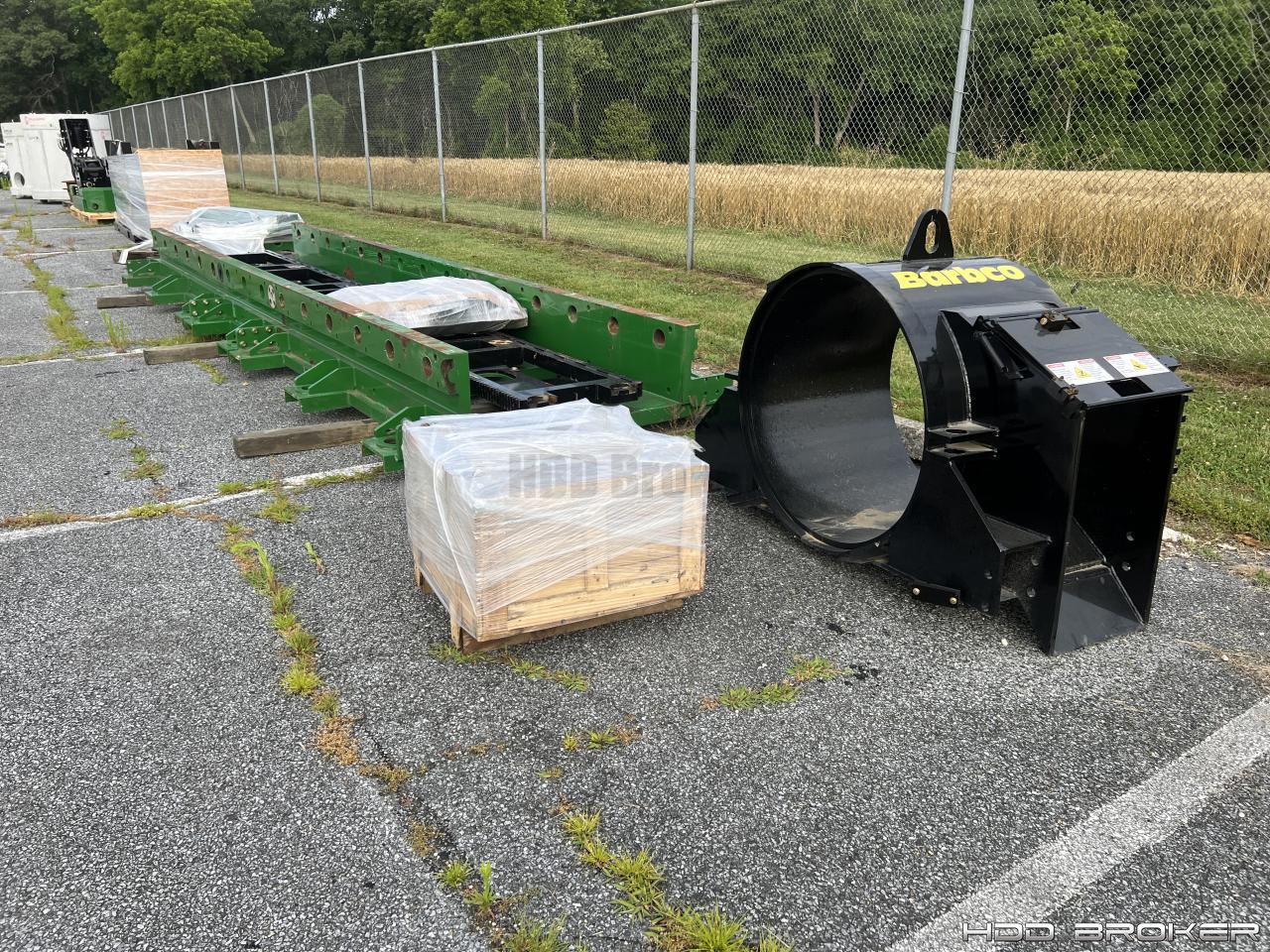

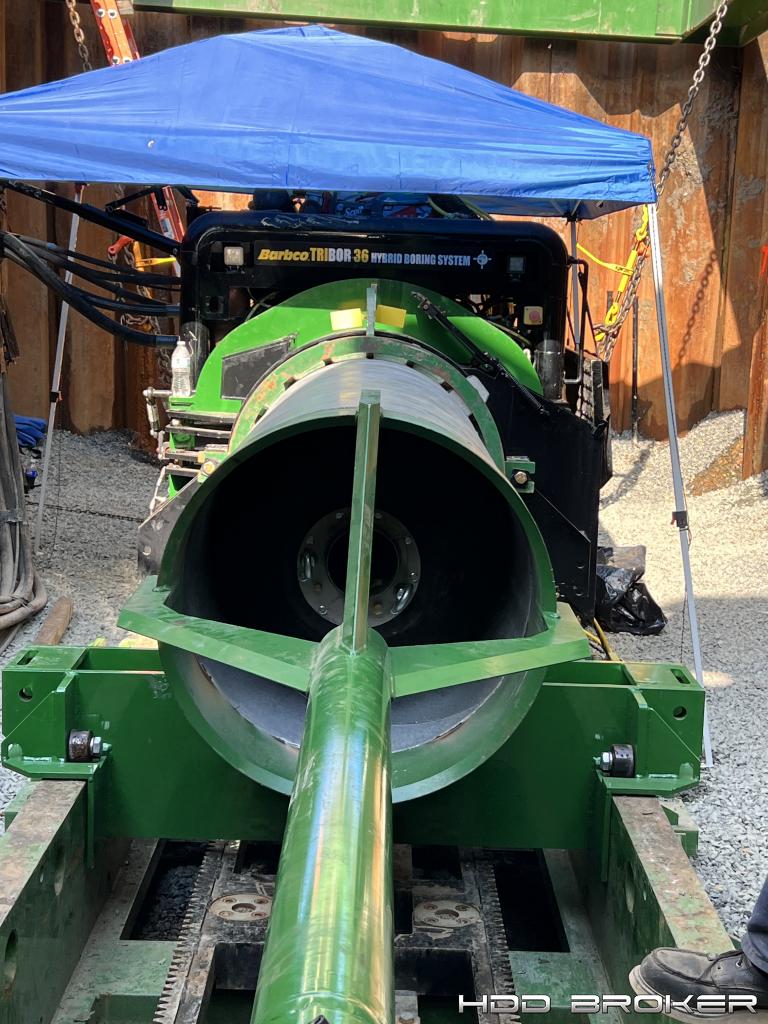

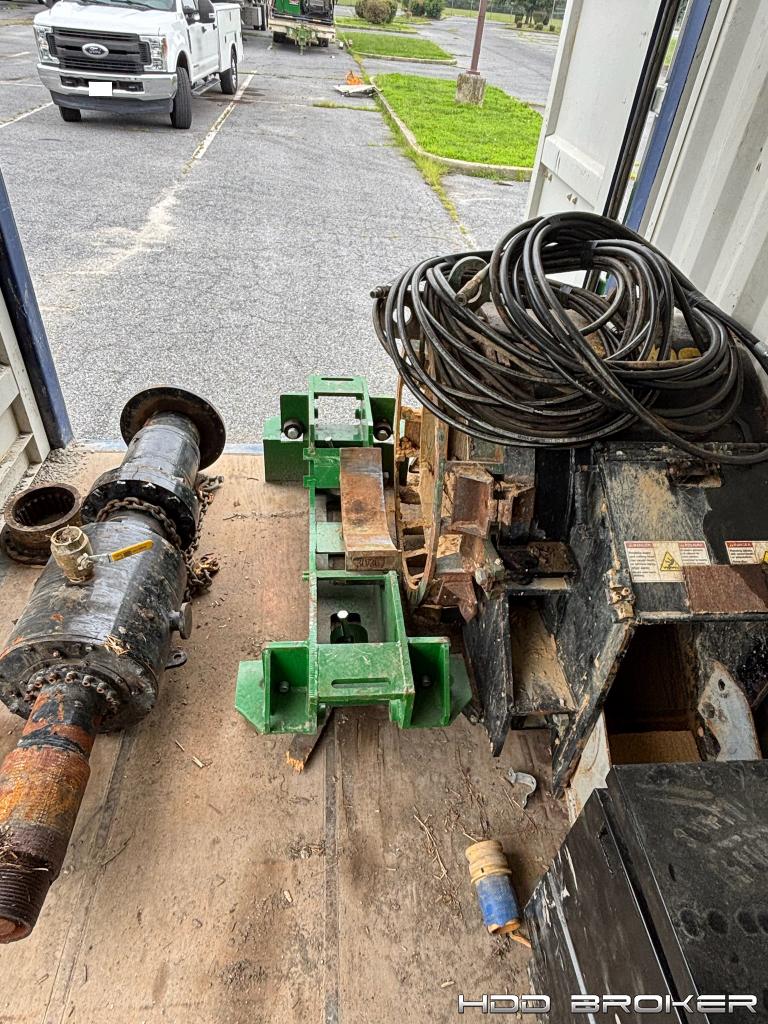

-(1) 36 Inch Casing and Saddle Attachment.
-(1) Auger to 4 inch Hex Adapter.

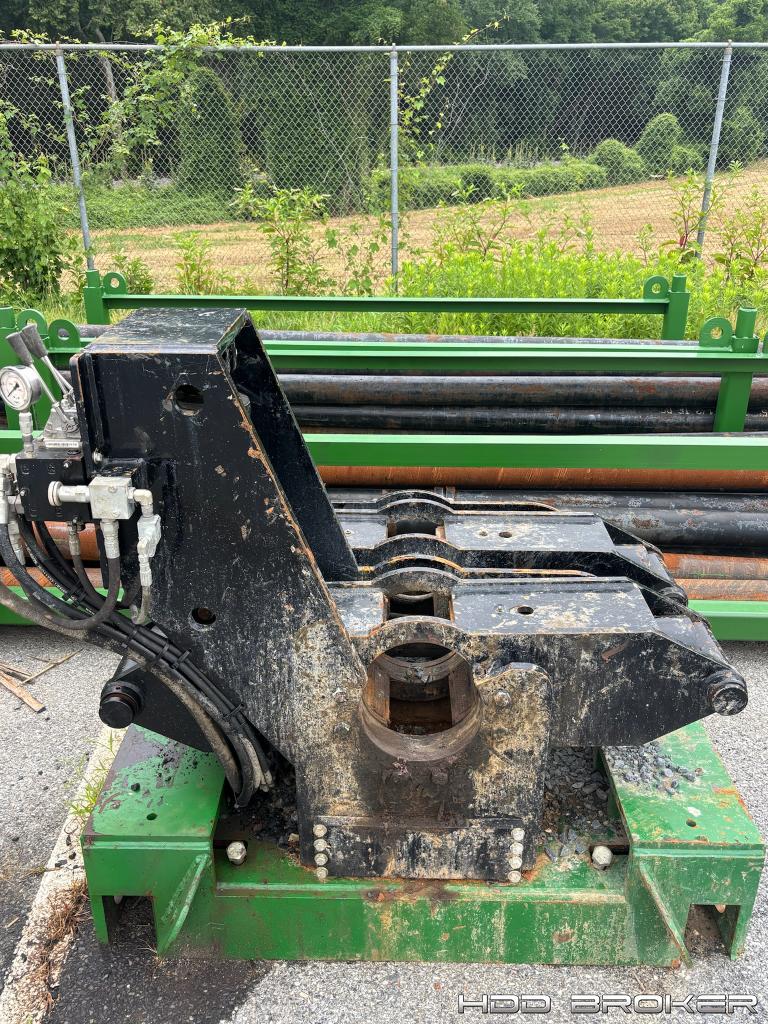

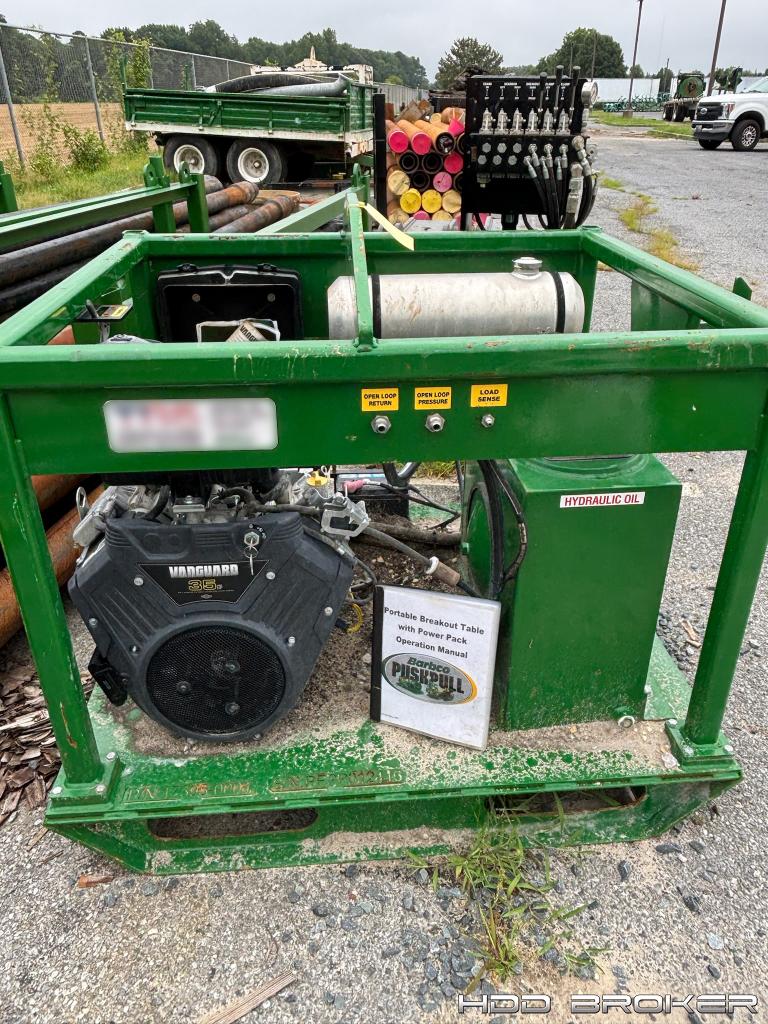

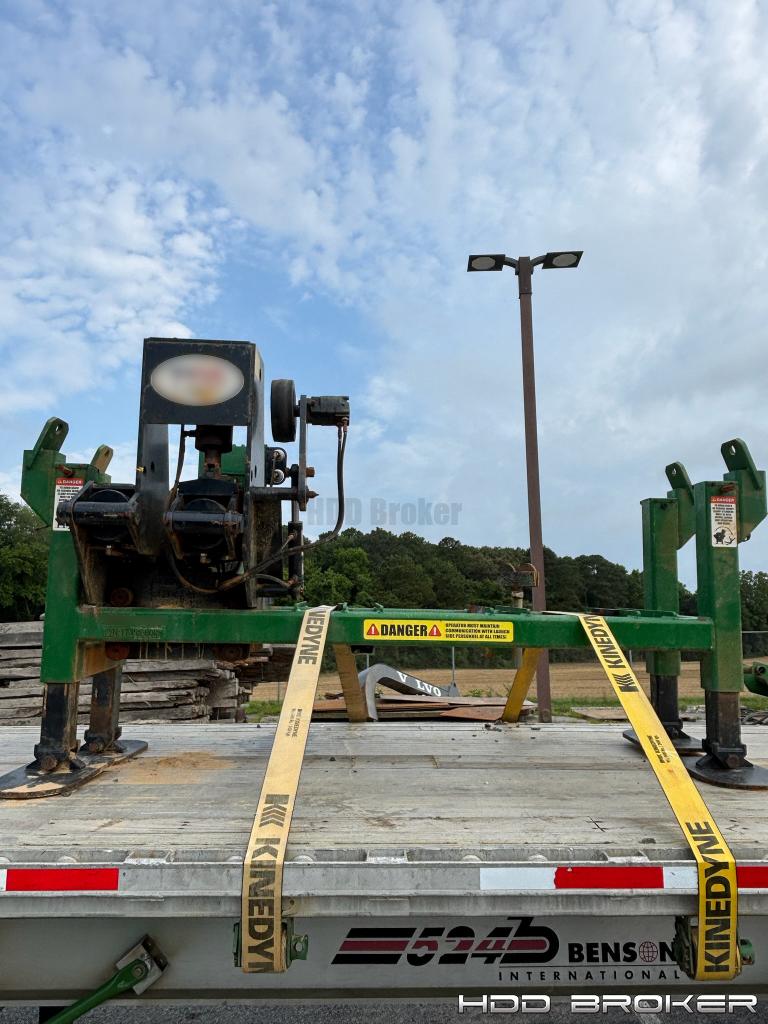

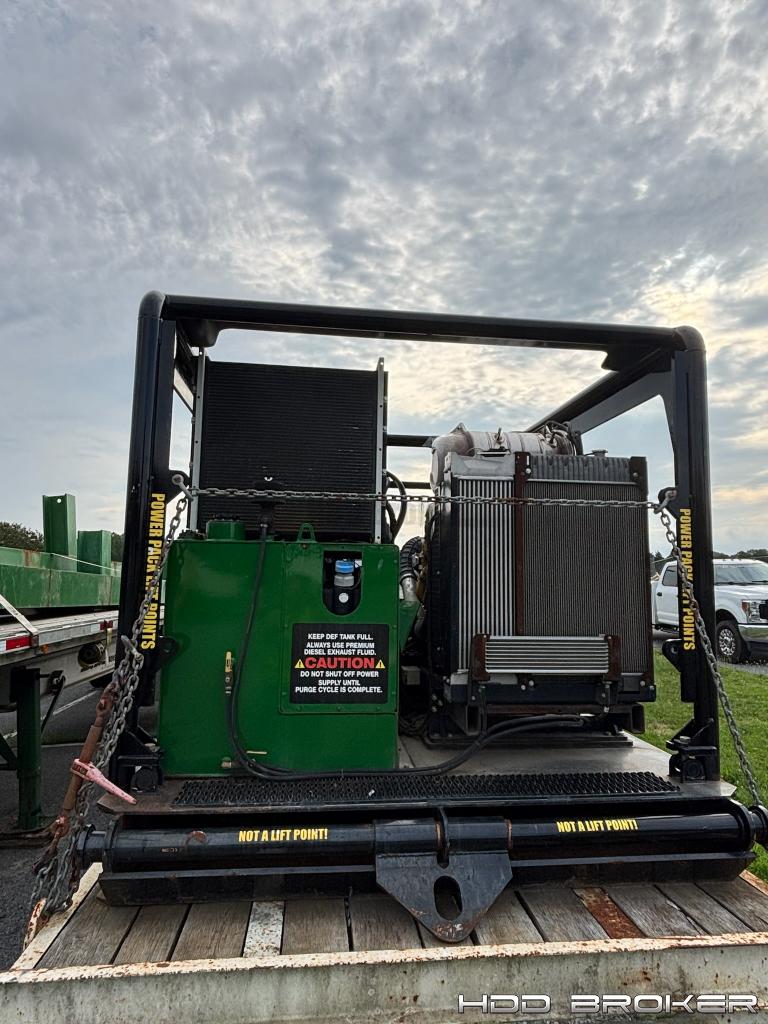

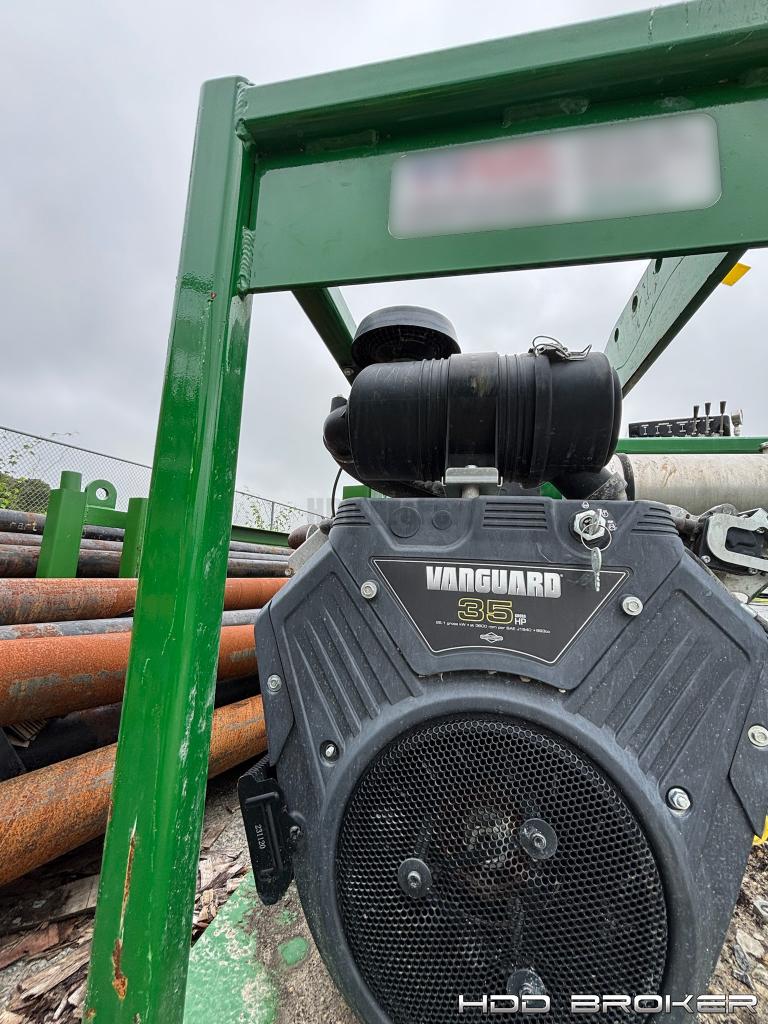

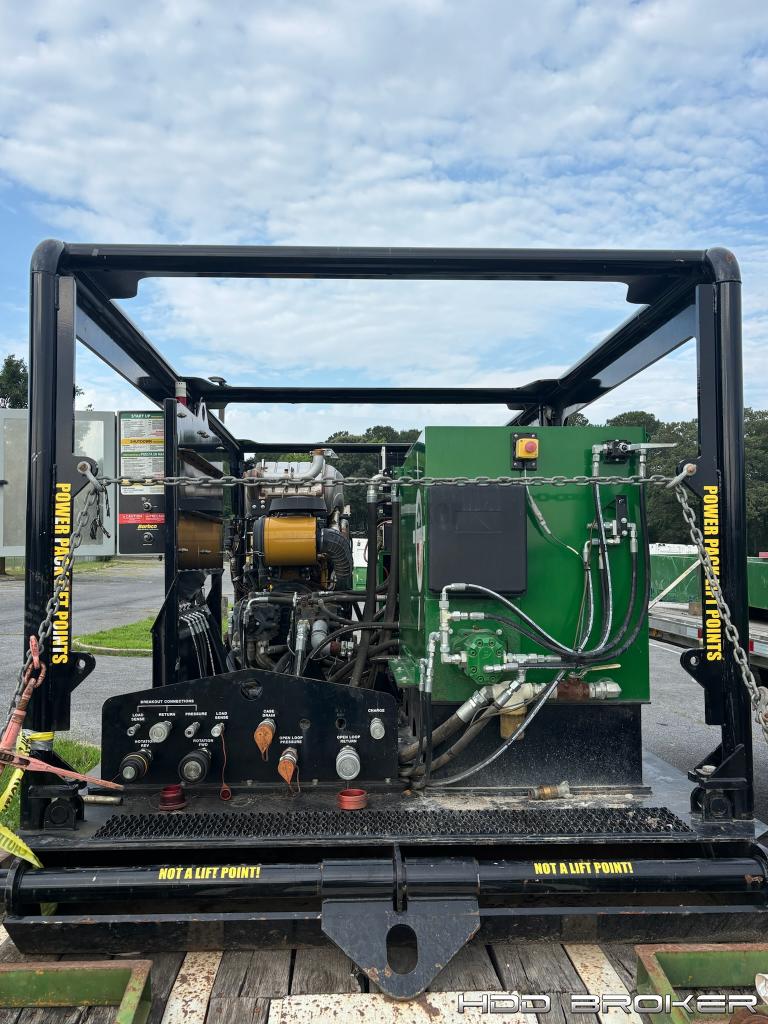

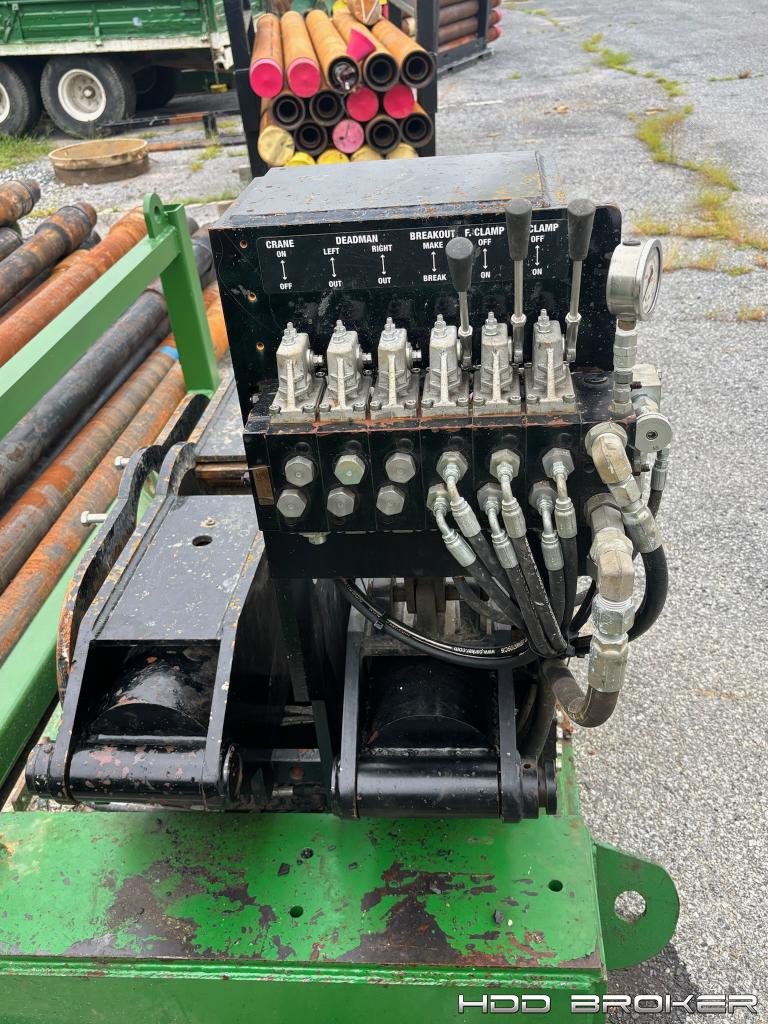

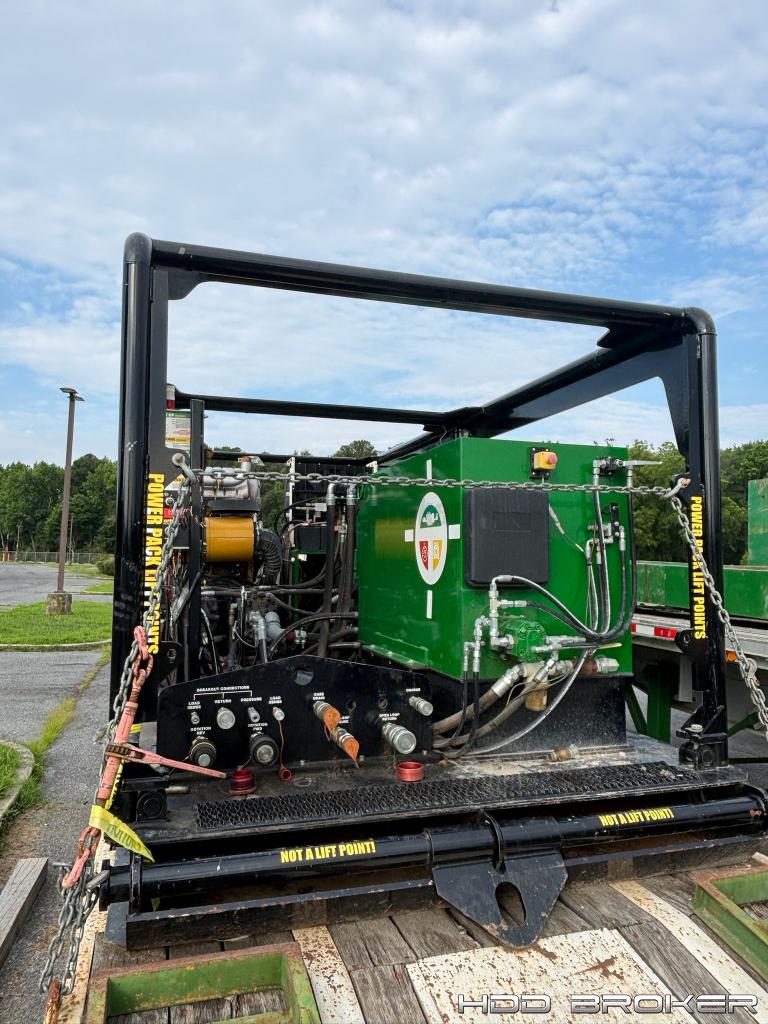

-(1) Bench Type Exist Side Breakout System with Hydraulic Power Pack.
Assorted Items:
-(1) Swivel Torque Arm.
-(1) HDD Swivel Clap Weldment.
-(1) Mud Swivel Assembly.
-(1) Sub Saver, 4-1/2 inch API IF, M/F, 10 inch shoulder to shoulder.
-(1) Sub Saver, 4-1/2 inch API IF (M/M) and wire line no wireline needed.
Additional Information:
-Heavy-duty TriBor 36 built for HDD, auger boring, and guided boring applications.
-This machine delivers high torque, strong push/pull capacity, and flexible setup options for utility, pipeline, casing, and rock drilling work.
KEY SPECIFICATIONS:

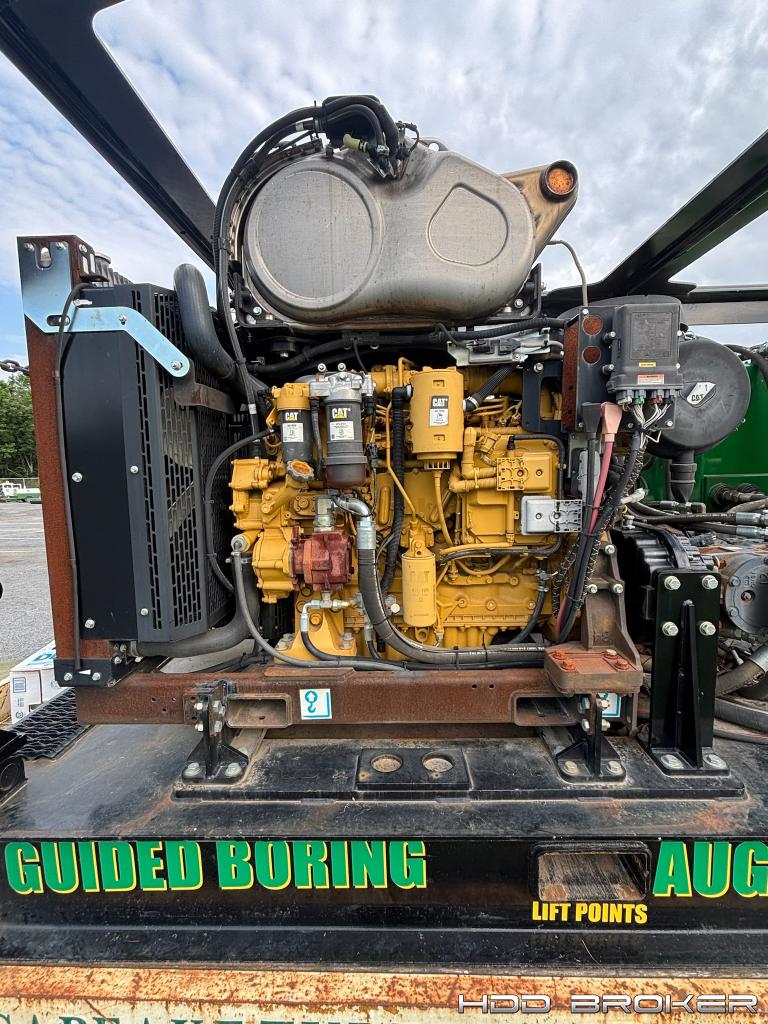

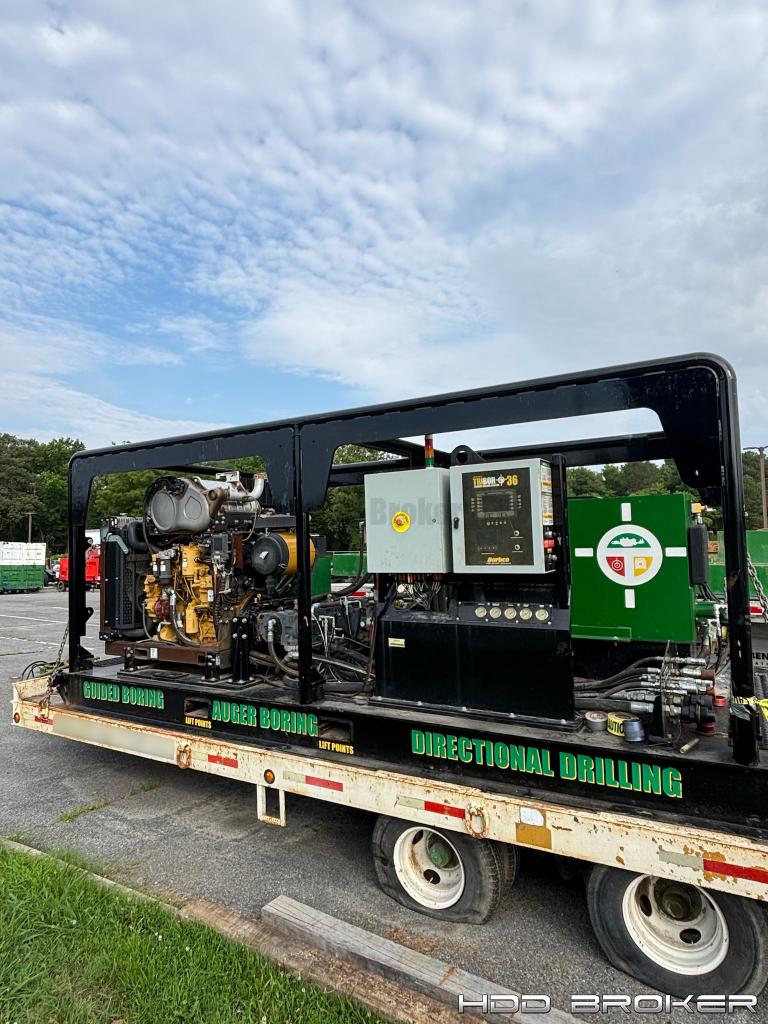

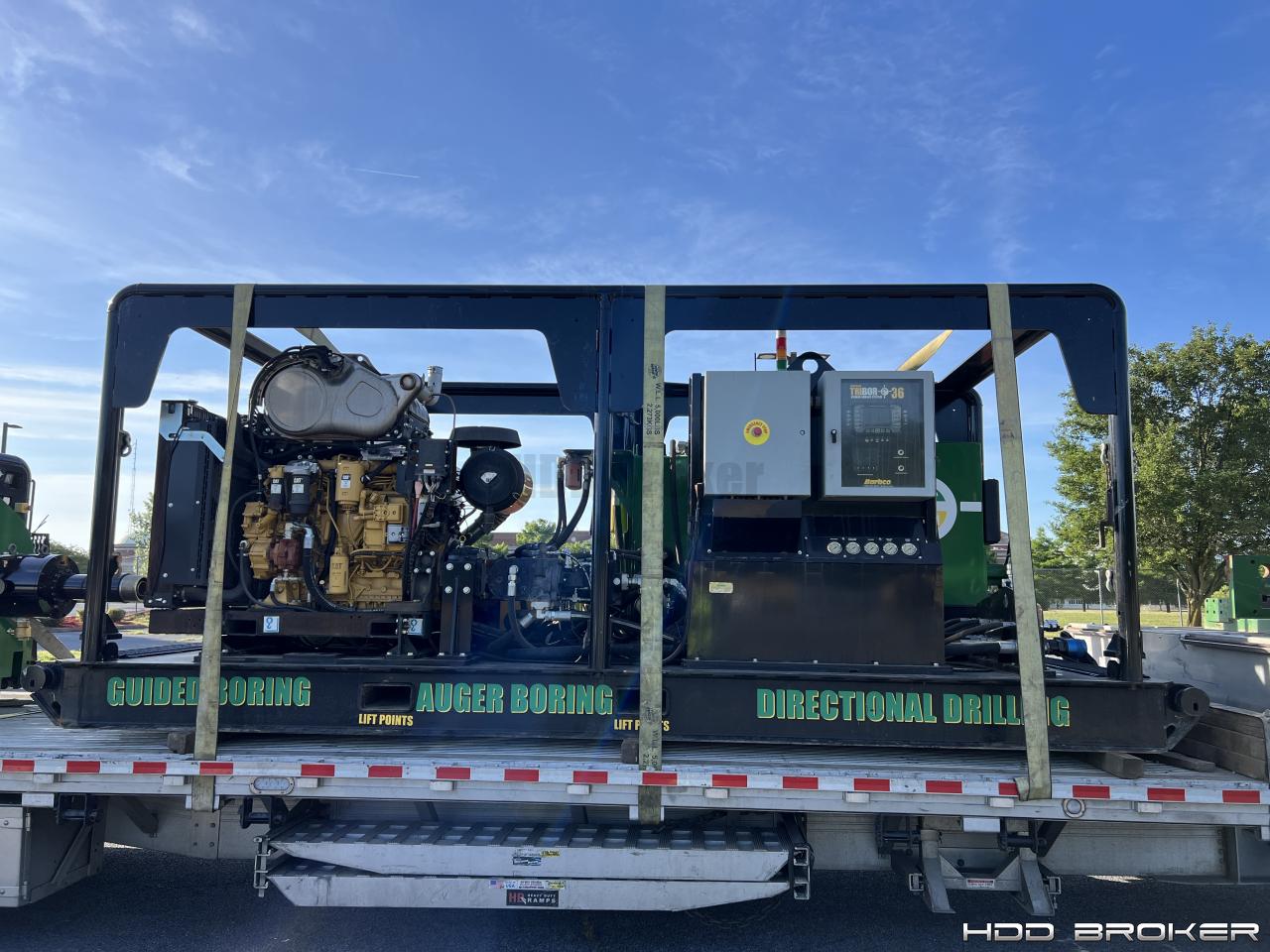

-Engine: 300 HP Diesel Engine.
-Maximum Torque: 60,056 ft-lbs.
-Rotary Drive: 3-Speed Gearbox, up to 84 RPM.
-Push Force: 500,142 lbs.
-Pullback Force: 375,107 lbs.
-Machine Weight: 33,950 lbs.
HDD METHOD:
-The TriBor 36 is equipped for horizontal directional drilling with a multi-speed, high-torque rotary gearbox and strong pulling force to bring back large-diameter product lines.
-Removable Dual Wrenches built heavy-duty to break the toughest joints.
-Mud Motor or Air Hammer ready for hard rock drilling conditions (not included).
-Compatible with walk-over or wireline-ready locating systems.
-Rear Spindle fluid swivel for high-volume mud pumping.
-Adaptable for all types and lengths of drill pipe.

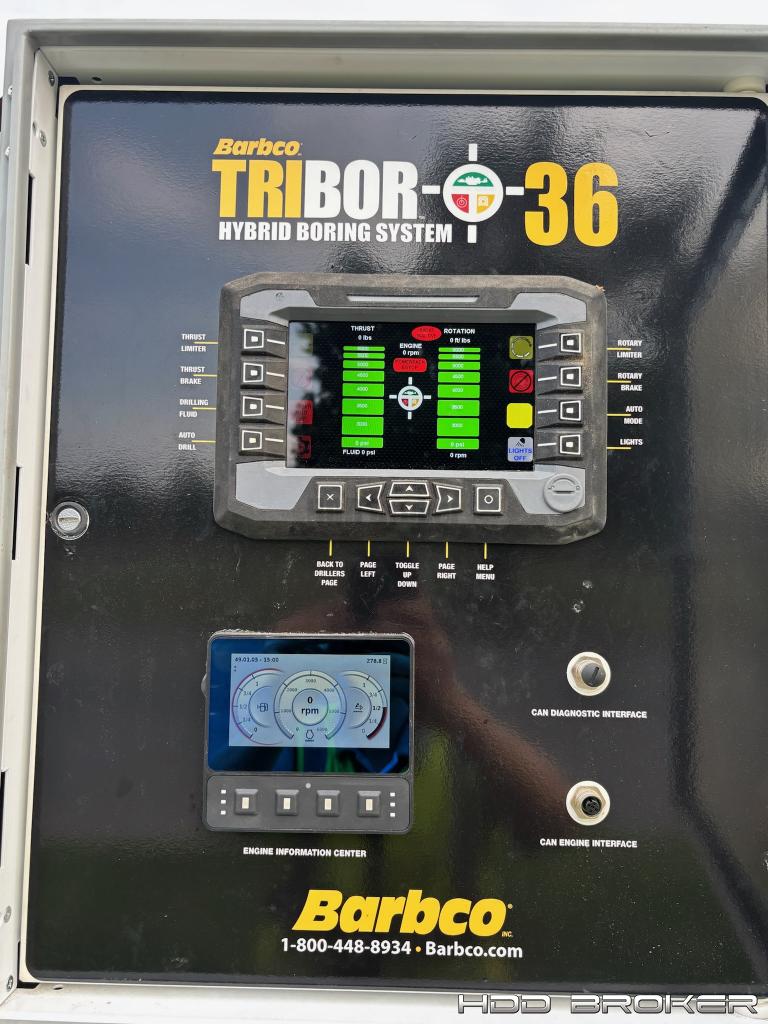

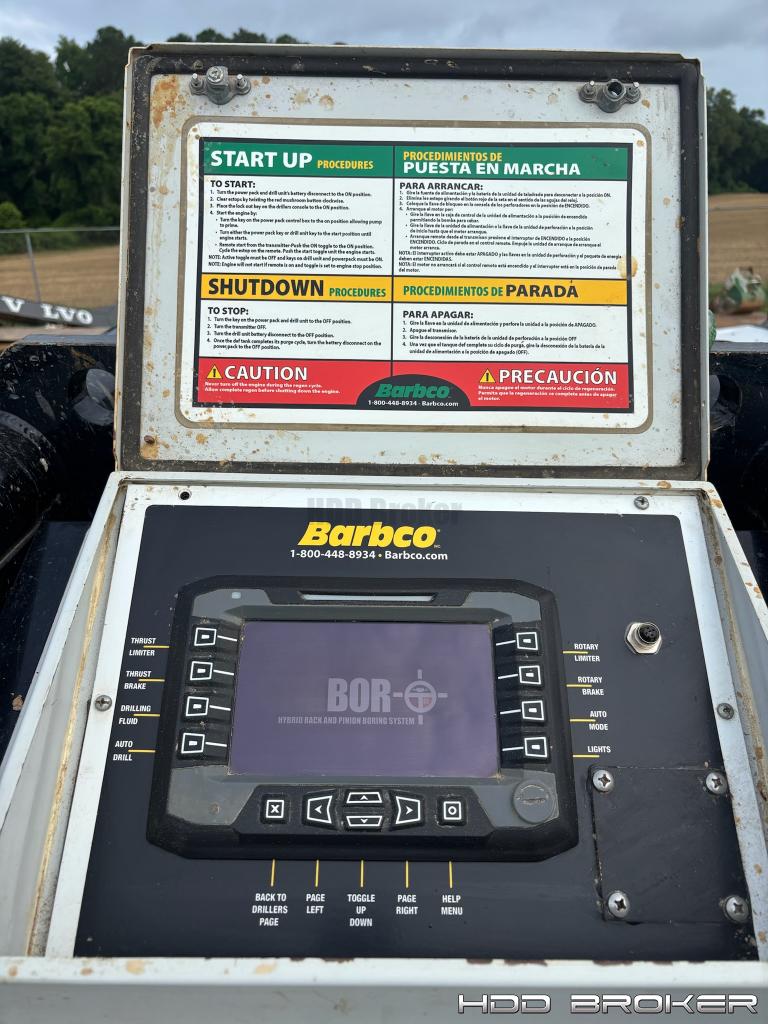

-Auto-Drill modes for optimal efficiency.
ABM METHOD:

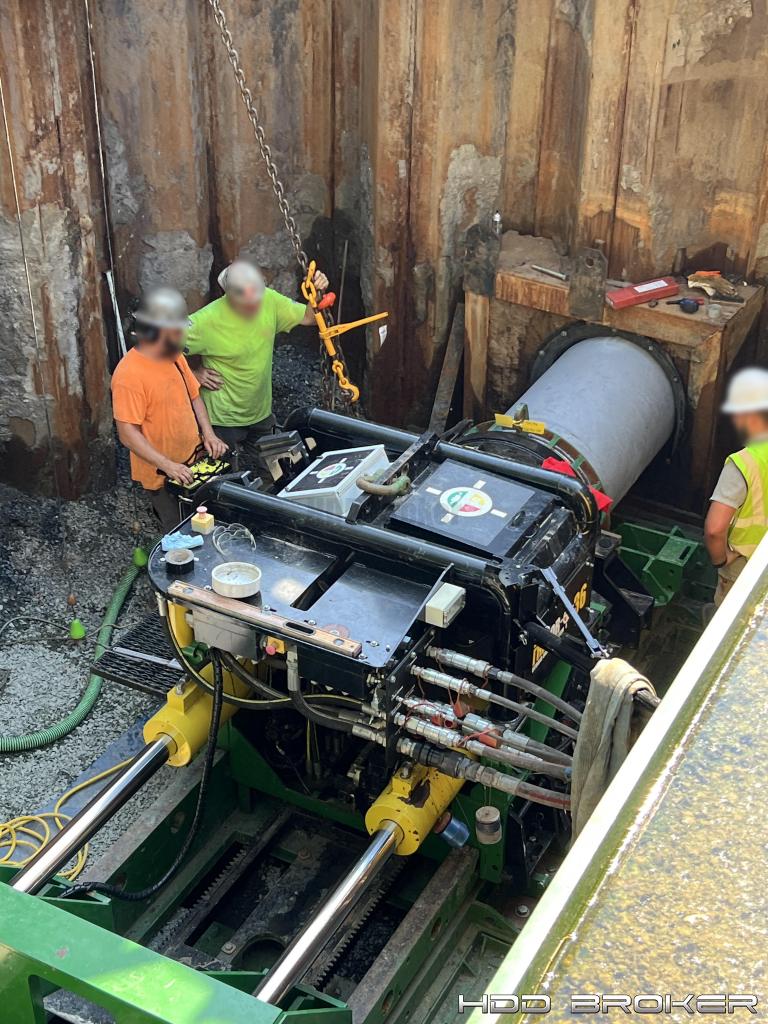

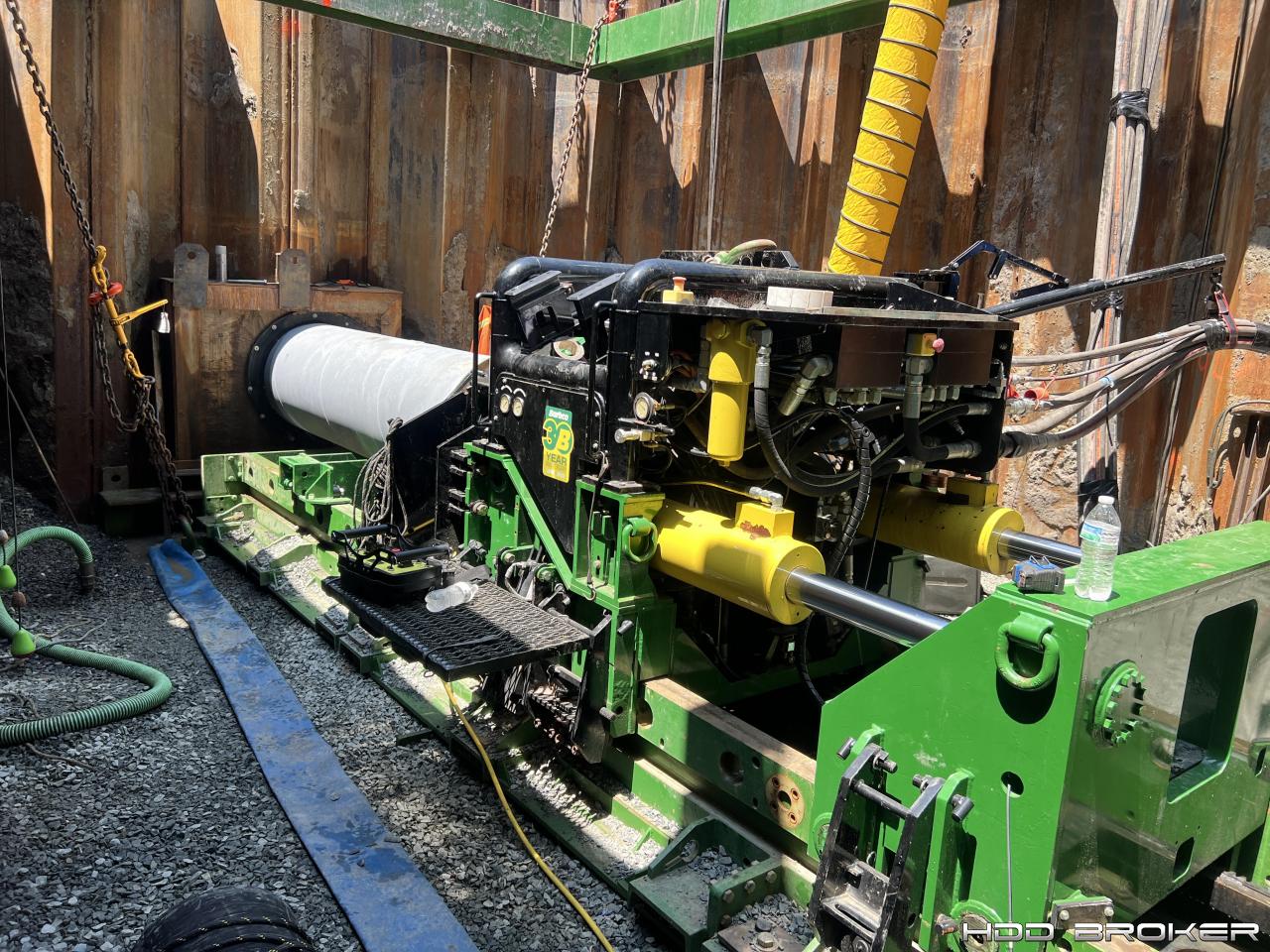

-The TriBor 36 is capable of auger boring applications and can install casing up to 48 inches in diameter using standard auger boring accessories.

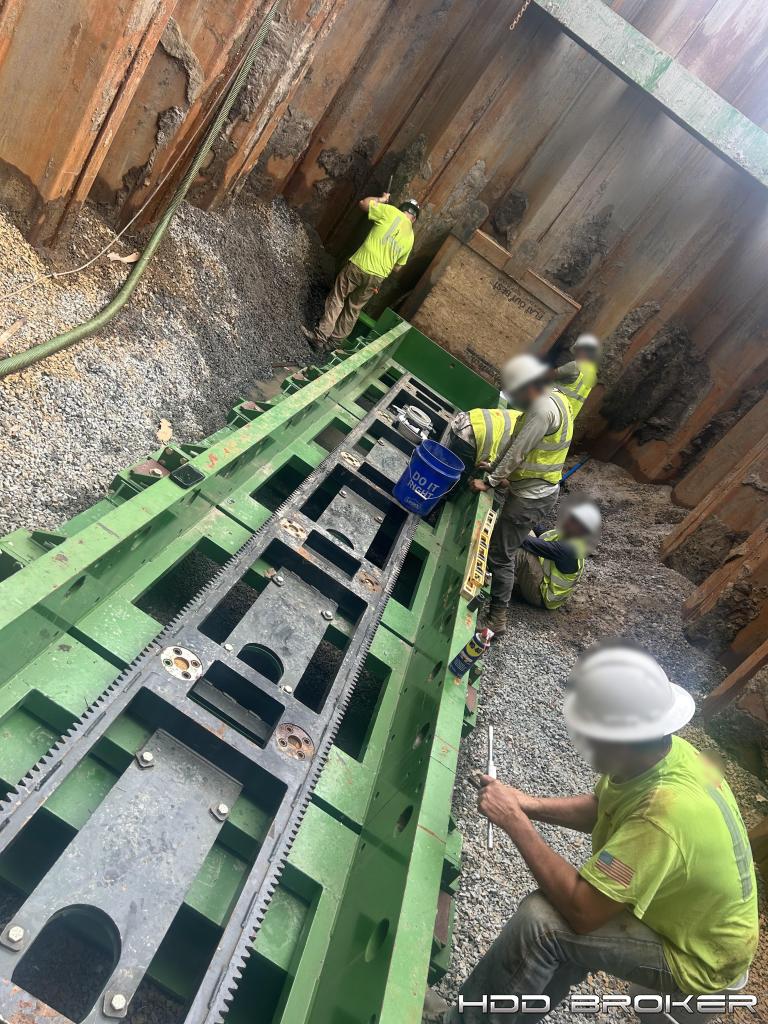

-Rack-and-pinion Thrust system for installing 20-foot casing in one continuous push.
-Time-saving operation when pulling auger.
-Locking Front saddle with hold-down capability.
-Powerful Jacking cylinders mounted on the machine's spring line for installing all types of casing.
-High-torque, high-speed rotary system.
-Three-paddle spoil ejecting system.
GBM METHOD:
-The TriBor 36 supports guided boring applications using highly accurate theodolite pilot tube steering technology.
-Side-entry fluid swivel for borehole lubrication.
-Adaptable for all types and lengths of pilot rods.
-Engineered for use with Air Hammers for guided boring through rock (not included).
-Removable Dual Wrenches built heavy-duty to break the toughest joints.
-Adjustable Torque settings.
